整体式液压拉马

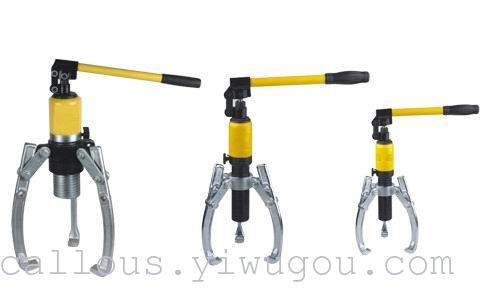

Integral Type Hydraulic Gear Pullers
5T 10T 20T 30T 50T
功能说明 Function
1.整体式拔轮器是一种替代传统拉马的理想化新工具。操作方便，使用省力，不受场地限制，结构紧凑，使用灵活，重量轻，体积小，携带方便，适用于工厂、维修场所。
2.有两钳或三钳爪形式可供选择。
1.The integral pullers are compact,lightneight.Easy to carry and operate.
It's least restricted by place and is extensively used by factories,repair stations.etc.
2.Both 2-jaw and 3-jaw styles are available.
| 产品编号 | 安全负重 | 横向最长外径 | 最大行程 | 单重 | 装箱数 | 毛重 | 包装尺寸 | ||||
| Art No. | Rated Output | Max.Spread | Reach | Max.Stroke | Net Weigt | Qty/Ctn | Gross Weight | Packing Size | |||
| L | W | H | Volume | ||||||||
| Ton | mm | mm | mm | kg | set | kg | cm | cm | cm | CBM | |
| PL0205-23 | 5T | 200 | 140 | 50 | 7.5 | 4 | 43 | 34 | 34 | 0.050 | |
| PL0210-23 | 10T | 250 | 170 | 60 | 11 | 2 | 43 | 38 | 20 | 0.033 | |
| PL0220-23 | 20T | 350 | 205 | 70 | 19 | 1 | 43 | 40 | 13 | 0.022 | |
| PL0230-23 | 30T | 400 | 220 | 70 | 25 | 1 | 48 | 20 | 18 | 0.017 | |
| PL0250-23 | 50T | 500 | 250 | 60 | 45 | 1 | 52 | 25 | 22 | 0.029 | |
