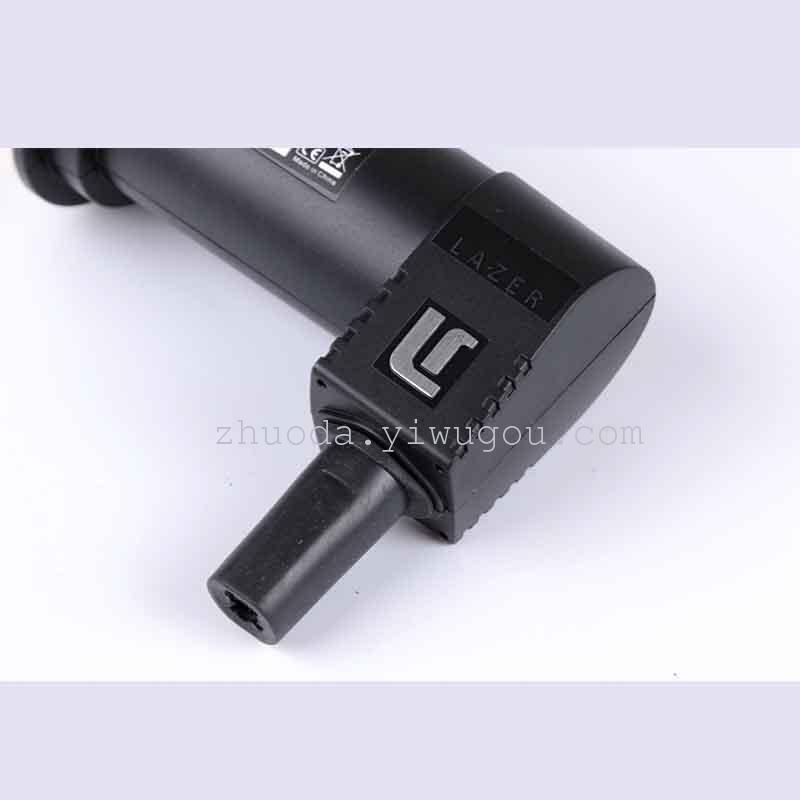

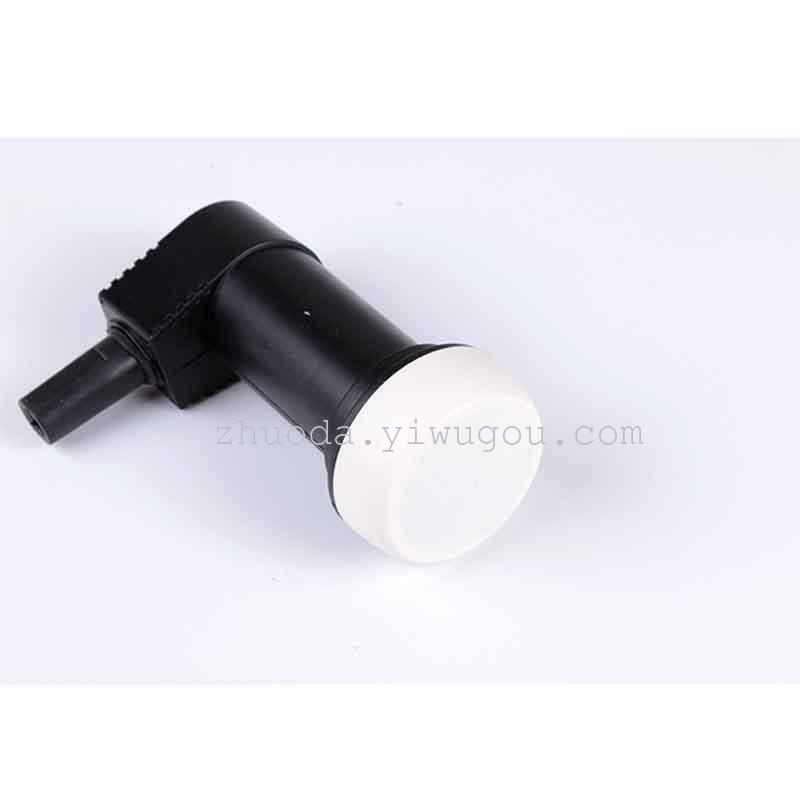

本产品适用于KU-BAND,10.7-12.75GHz,性价比高，使用效果好，用户满意度高。

INPUT FREQUENCY

10.7~12.75GHz

OUT PUT FREQUENCY

950~2150MHz

L.O. FREQUENCY

9.75/10.6GHz±1MHz

STABILITY

±2MHz (-40?C~70?C)

L.O. PHASE NOISE:

-70dBc/Hz

1KHz

-90dBc/Hz

10KHz

110dBc/Hz

100KHz

CONVERSION GAIN

60dB (TYP)

GAIN FLATNESS

±0.5dB/6MHz; ±2.5dB/IN BAND

NOISE FIGURE

0.3dB (TYP)

INPUT V.S.W.R

2.5:1

OUTPUT V.S.W.R

2.5:1

IMAGE REJECTION

50dB (TYP)

OUT PUT POWER

+5dB (MIN) (AT 1dB COMPRESSION)

CROSS POLARISATION

23dB (MIN)

DC SUPPLY VOLTAGE

11~14.5V (V),15.5~22V (H)

SUPPLY CURRENT

130mA (MAX)

LOW/HIGH BAND SWITCHING LOW BAND

0KHz

HIGH BAND

22KHz±4KHz

OPERATING TEMPERATURE

-40?C~70?C

RELATIVE HUMIDITY

0%~95%
