包装信息

裸机尺寸:17.5X14X7.5CM

带盒子尺寸:23X15X8.5CM

外箱：48X31X44CM

净重：0.75KG

毛重：0.8KG

箱台：20台/箱

箱重：17KG

We are dedicated to 1688 at home and abroad

Direct sales of factories attract investment

Product support: wholesale, retail, OEM ODM LOGO OEM customization,etc

Sufficient inventory, provide one-to-one service, please contact customer service

Our charger series has

Current：6A, 8A, 10A, 12A, 18A, 23A, 30A, 50A

Power：180w,220W,400W,600W,800W

Welcome to inquire

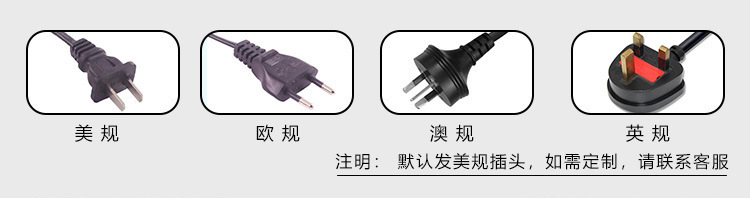

plug size

110V ~ 250Vwide voltage, universal in the world

110V                  Taiwan, Japan, Korea

110V~ 130V       30 countries including the United States, Canada, Cuba, Mexico, etc

200V                  Hong Kong, China

220V                  Chinese mainland, Germany, Singapore, Italy and 120 other countries

220 ~ 230V        Sweden, Russia

The product is suitable for

It's compatible with all kinds of 12V /24V lead-acid battery, water battery, maintenance-free battery, dry battery charging. etc.  (VELA BATTERY ,GEL BATTERY,OPZN BATTERY）

And 12.6V lithum battery

apply

Cars, SUVs, motorcycles, electric vehicles, small trucks, tractors and other types of vehicles

characteristic

1.12v/24v universal automatic identification

2. Compatible with 12.6V polymer lithium battery

3. Full charge automatically stops output current

4. Digital display: current, voltage, power and charging state in different stages

5. The current can be adjusted manually, automatic and manual charging mode, more reliable and safe

Specifications

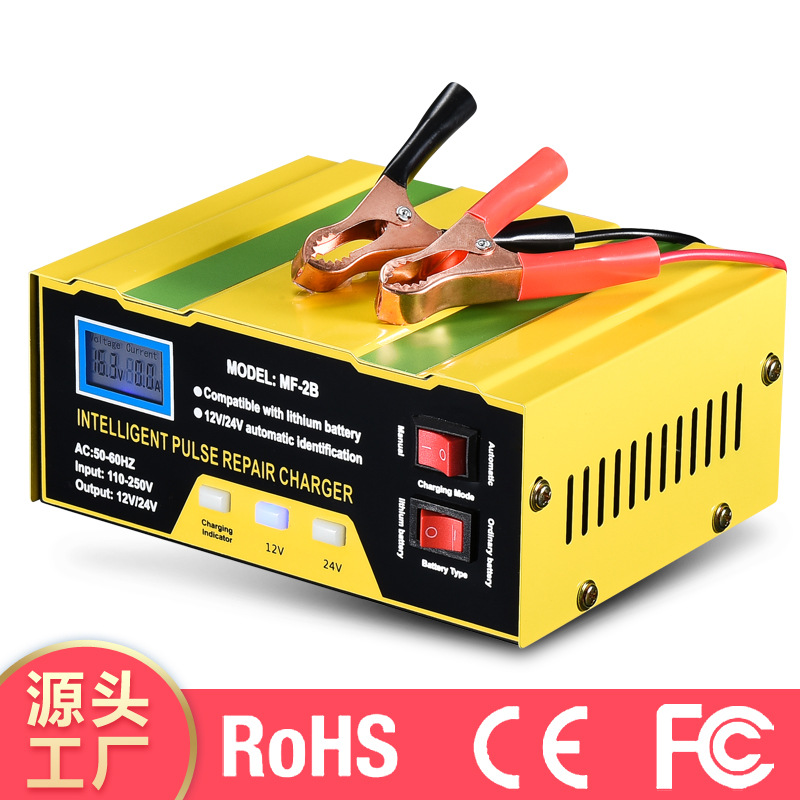

Model：MF-2b / WLSH-20b

Input voltage：110V ~ 250V Power：180W

Output voltage：12V / 24V Frequency：50-60 Hz

Working current：12v-10a/24v-7a working temperature：- 30 ℃ to + 50 ℃

Packaging information

Product size：175*140*7.5mm

Net weight：0.75kg Gross weight：0.8kg

Packing quantity：20Dais Carton siza：48x31x44cm

Packing Weight：17kg Plug：Optional
input line：120cm output line：60cm

Packing list
1 * charger
1 * user manual (English)

Charging time reference
Battery（AH）    Charging time（H）    Battery（AH）    Charging time（H）

3AH                       0.5                            6AH                  1-2

9AH                       1-3                           36AH                 7-8

45AH                     7-10                         60AH                 9-14

80AH                     10-15                       105AH      　　   15-22

120AH                   19-25                       150AH    　        20-28

Charging mode
Four stage charging , protect the battery ,non-overcharging
1.Adaptive electricity charging
2. Charging at constant voltage
3. Full charge soon&conduct floating charge
4. Microcurrent supply/full charge

SIX  Protections ,Ensure safe charging
hort Circuit protecton
Polarity error protecton
Overheating protection
Over current protection
low-voltage protection
Over voltage protection

Note
1. Please do not block cooling fan or use the charger while cooling fan is stopped
2. Please prevent the charger from rain or water to avoid damage
