包装信息

   产品型号：MF-1/XW-10

   产品尺寸：17.5×13.8×5.8CM （长*宽*高）

   盒子: 19.5X17X7CM

   外箱：42x36.8x38CM

   单个净重：0.75kg

   单个毛重：0.85kg

   箱入：20只

   箱重：18.5KG

   HS编码: 8504409999

   注：产品为中性包装，不含磁，不带电池！

 Application

It's compatible with all kinds of 6V /12Vlead-acid battery, water battery, maintenance-free battery, drybattery charging. WET, GEL, ARLA etc.

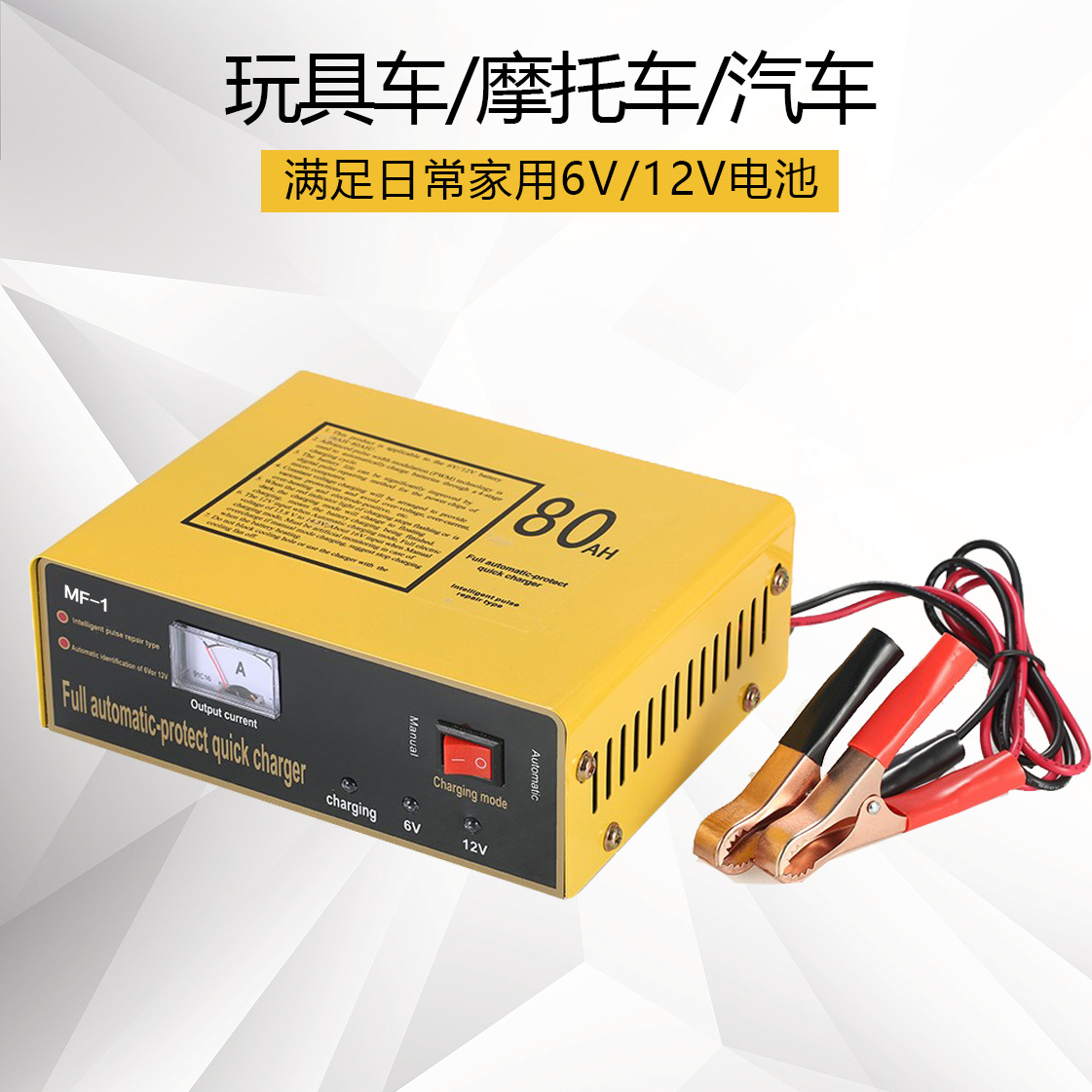

Charge & Maintain: Children toy car, motorcycle, Car, scooter, motorcycle, car, SUV,etc.

Features:
1.Applicable for 6V/12V battery.

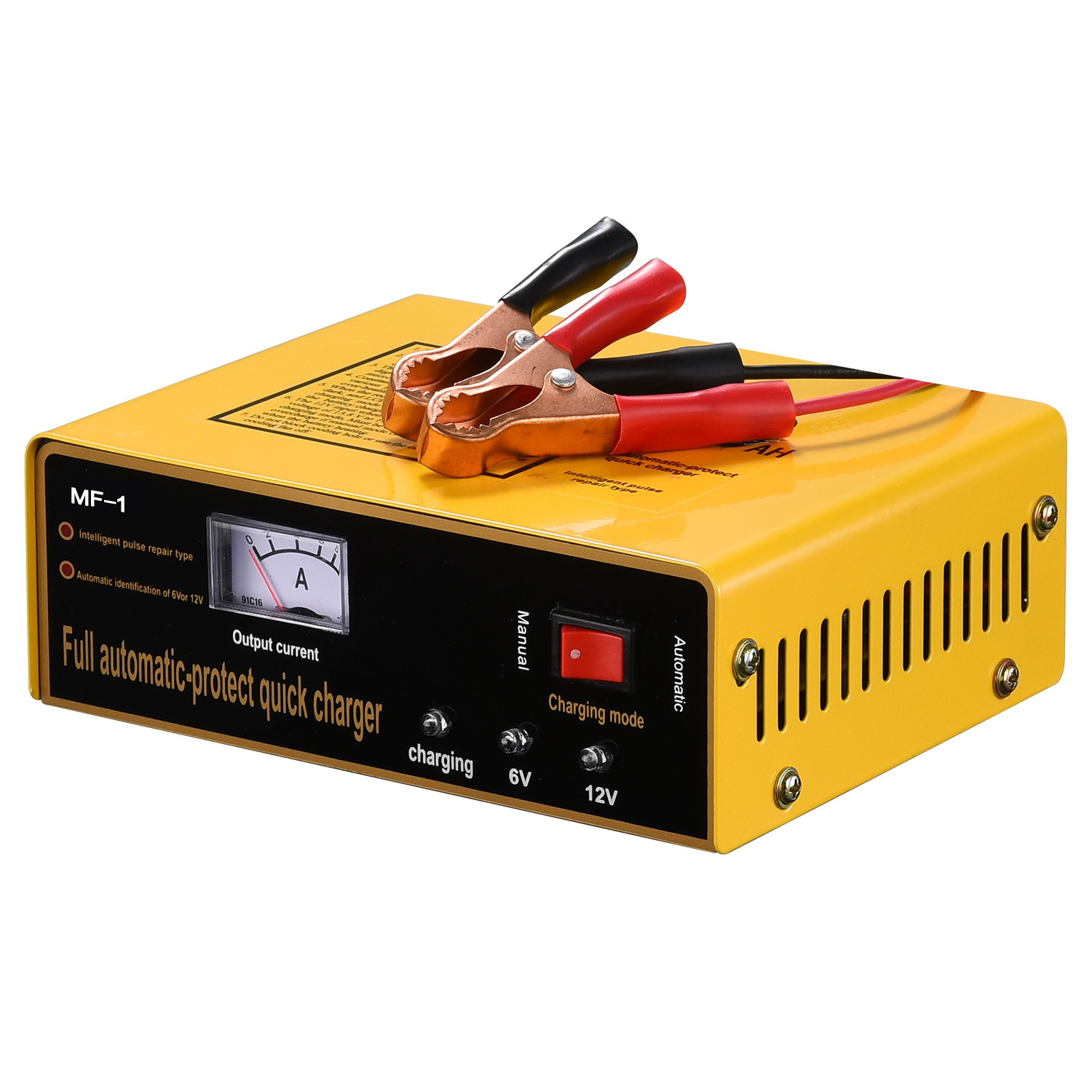

2. Pointer table display

3.Automatic & manual charging modes, more reliable and secure.

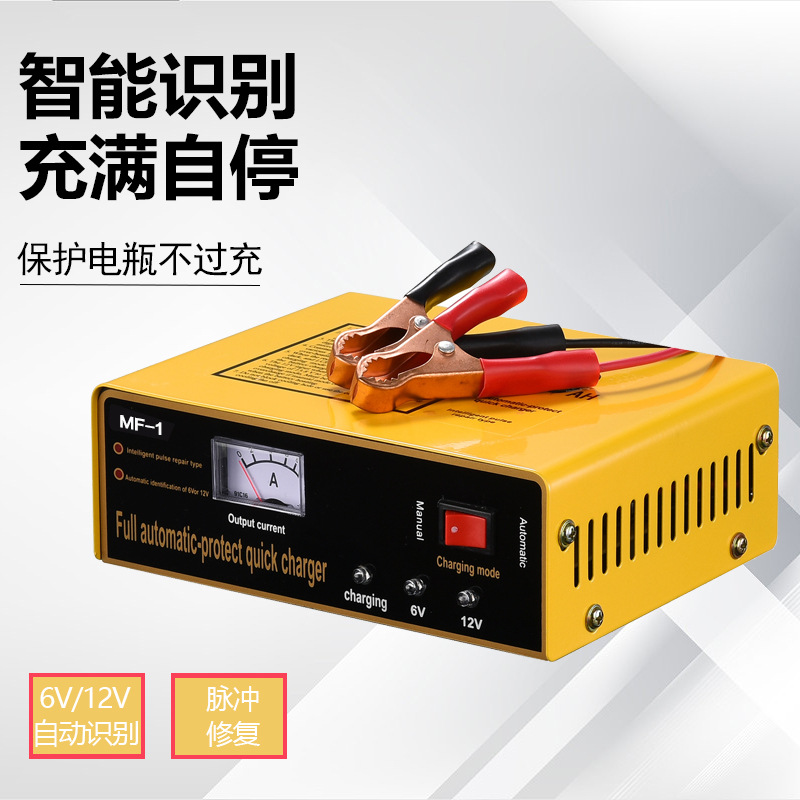

4.One-button charging automatic

5. 4 charging status ,when it charing full ,it will stop in intellingent mode.

TIP:The larger the true capacity of the battery, the longer it will take to charge.

Automatic / Manual Mode

1.     Automatic mode

automatic detection of battery requirements, intelligent adjustment of current, self-stop, suitable for normal use of the batter

2.     Manual mode

for deficient battery, low-voltage battery, low temperature, manual mode charging after a period of time into automatic mode remember to manually monitor the battery temperature, battery shell heating stop charging, do not charge for a long time!

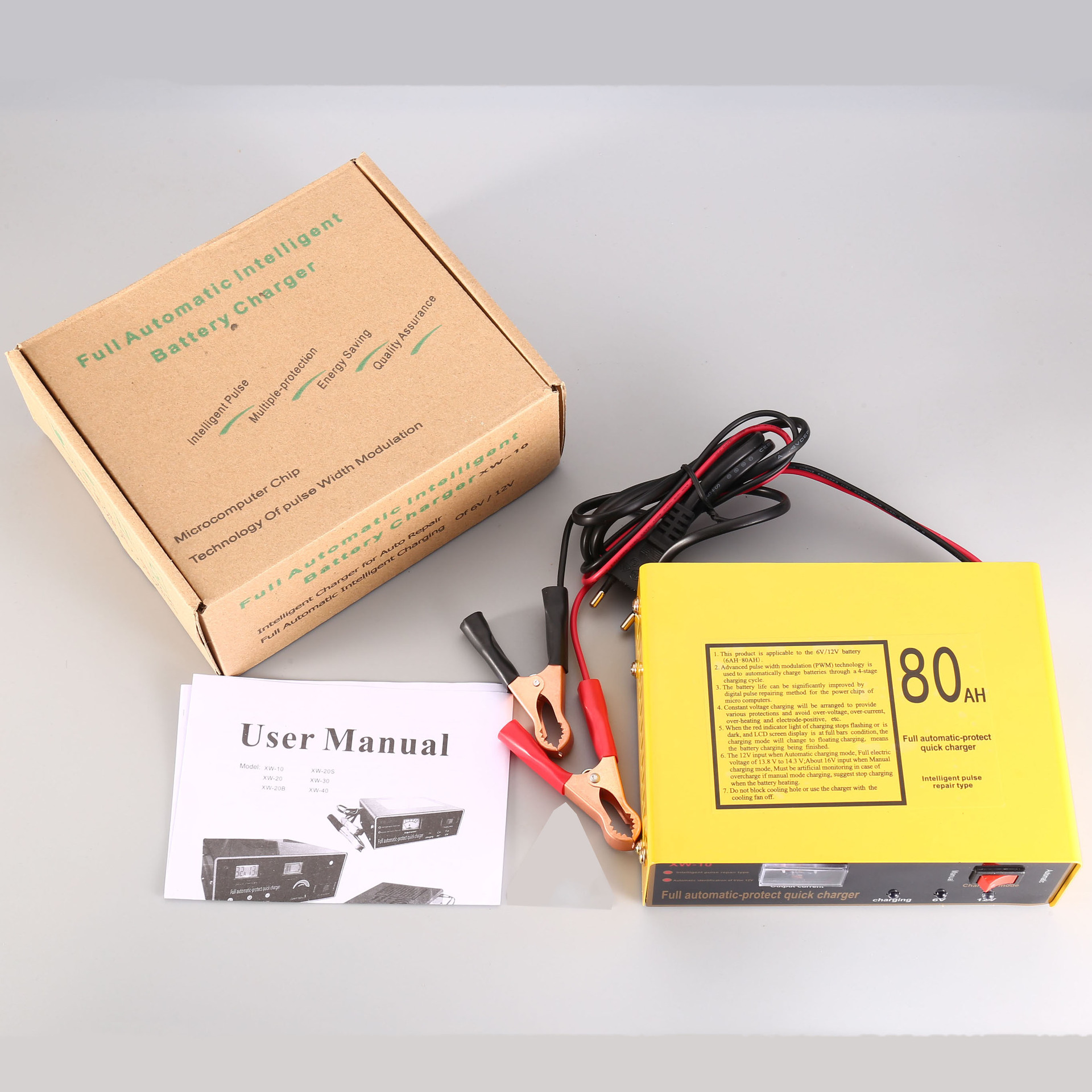

Package List:
1 * Charger
1 * User Manual (English)

Note:
1. The charger is suitable only for charging matched battery within the listed voltage range.

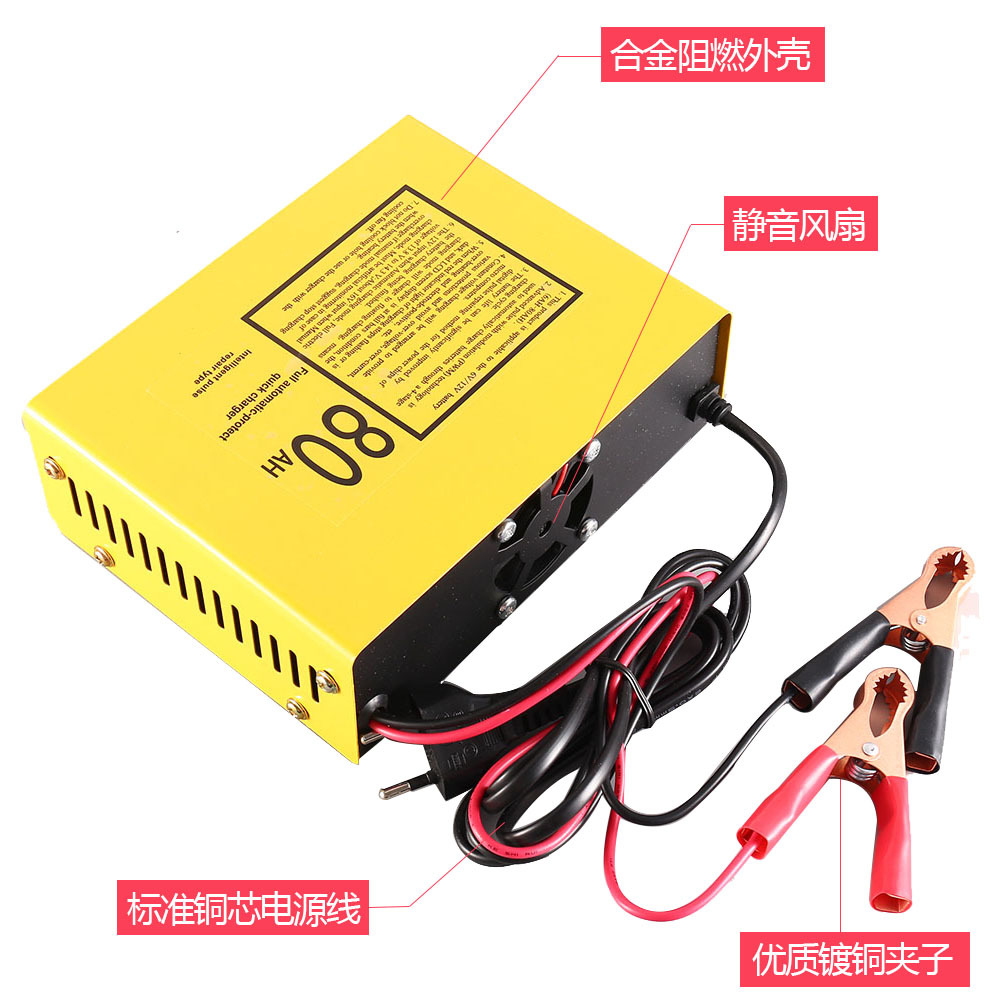

2. Please do not block cooling fan or use the charger while cooling fan is stopped.
3. Please prevent the charger from rain or water to avoid damage

Four stage charging , protect the battery ,non-overcharging

Adaptive electricity charging

Charging at constant voltage

Full charge soon&conduct floating charge
Microcurrent supply/full charge

SIX  Protections ,Ensure safe charging

Short Circuit protection

Polarity error protection

Overheating protection

Over current protection

low-voltage protection

Over voltage protection

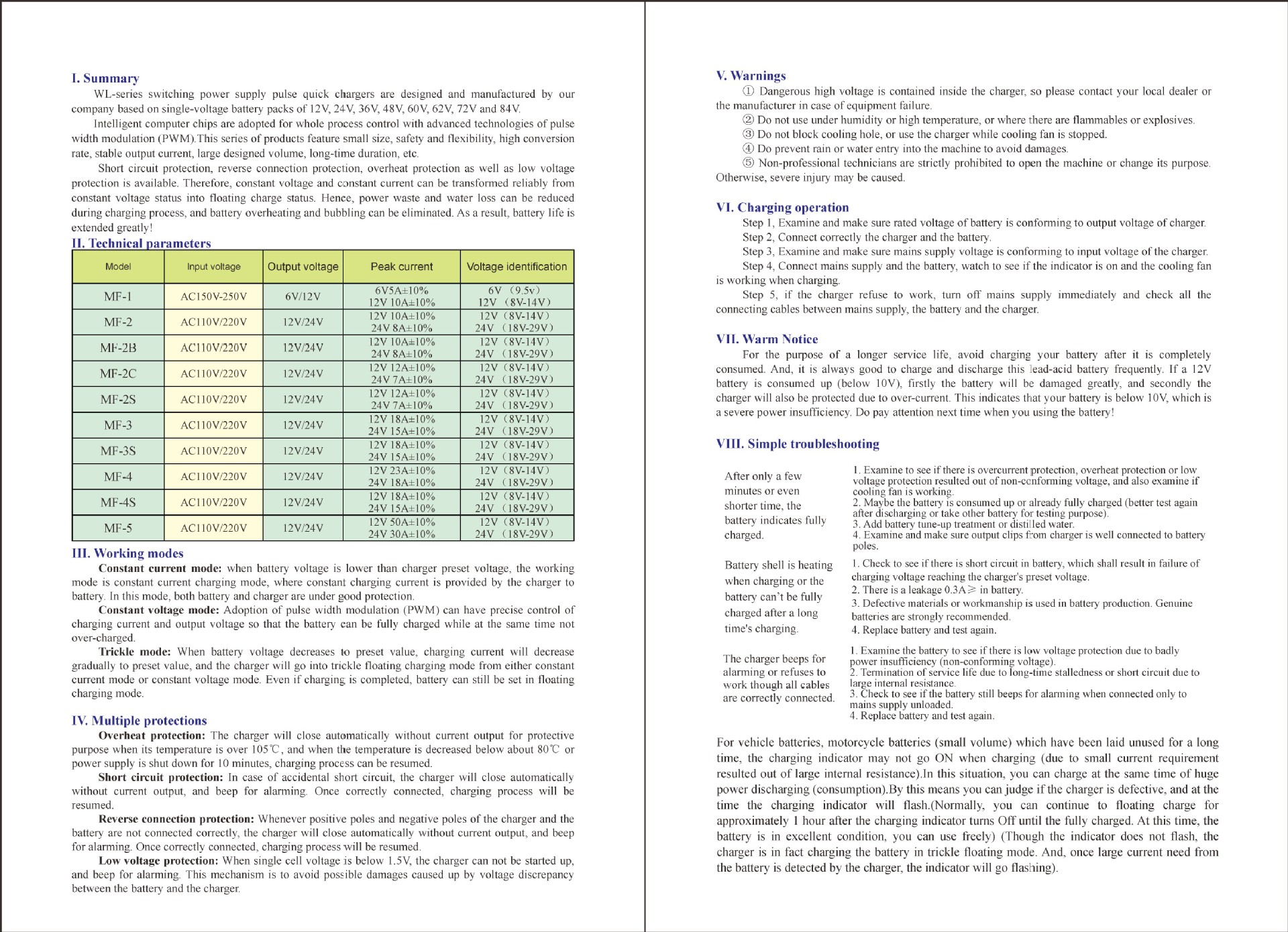

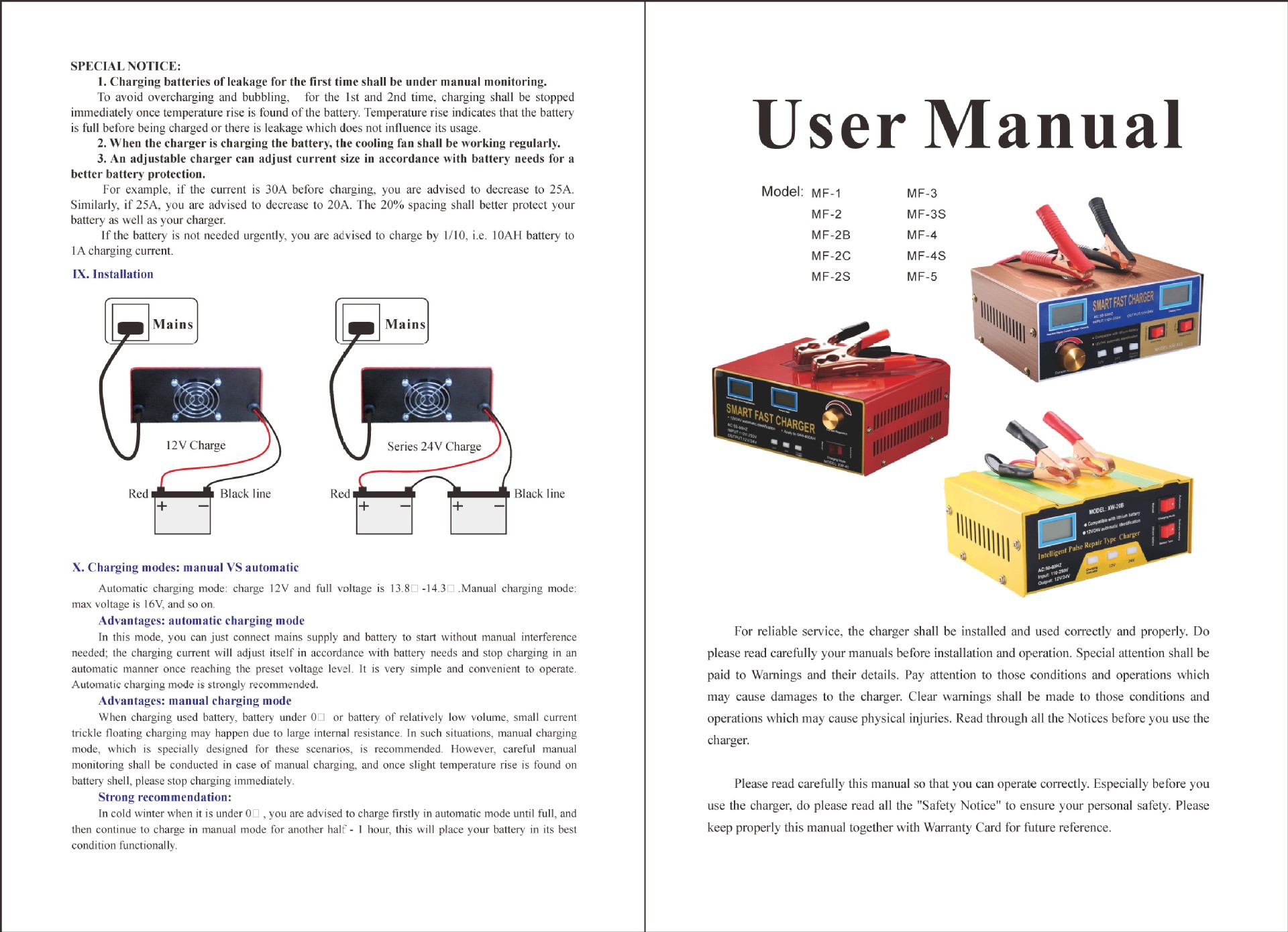

充电器配的说明书

自动模式优点：

      使用动模式的时候直接接通电源和电瓶就可以了，充电不用人为调节，电流会全自动根据电瓶需要全自动调节，充到某个电压位置而自动停机，使用智能方便。强烈推荐使用自动模式。

手动模式优点：

     当遇到旧的电瓶，温度低（0°以下环境）的电瓶，还有容量稍小的电瓶的时候，因为这类电瓶内阻大，使用自动模式会出现小电流涓流浮充现象。手动充电模式是针对这类电瓶的内阻大的特点，设计的充电程序，有辅助修复电瓶功能，令电瓶效果发挥得更好。但使用手动模式充电必须要人工监控，在电瓶外壳有轻微温度时，停止充电。

 强烈推荐：寒冬在0°以下 环境 电瓶发挥的不好时候 先用自动模式充满 可以再用手动模式 多补充半小时—1小时左右 可以令电瓶性能发挥更好!
