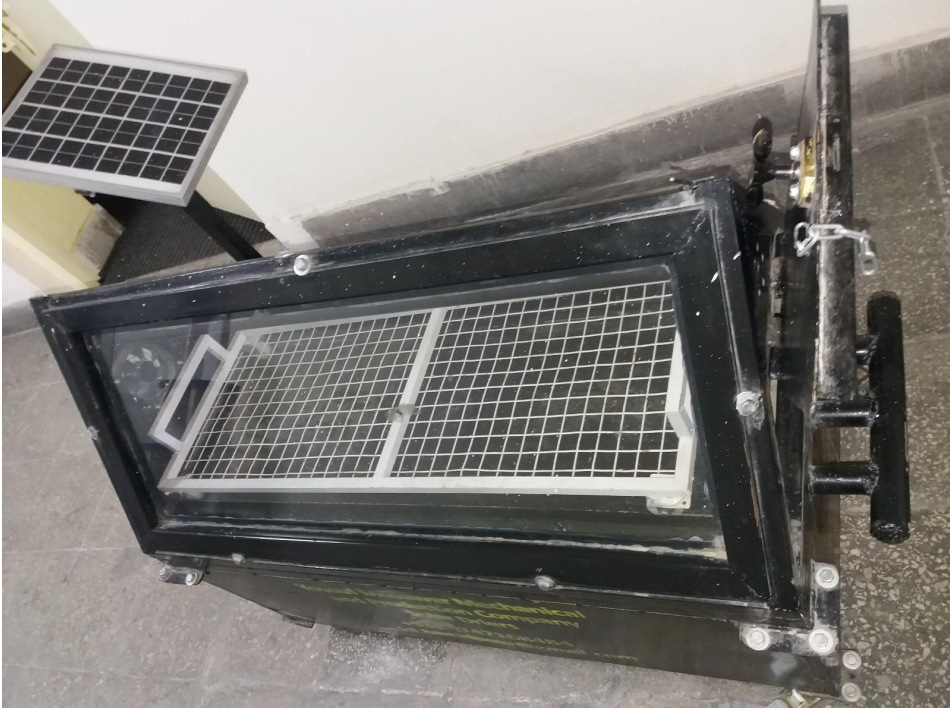

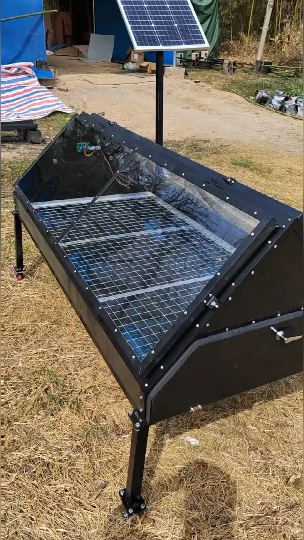

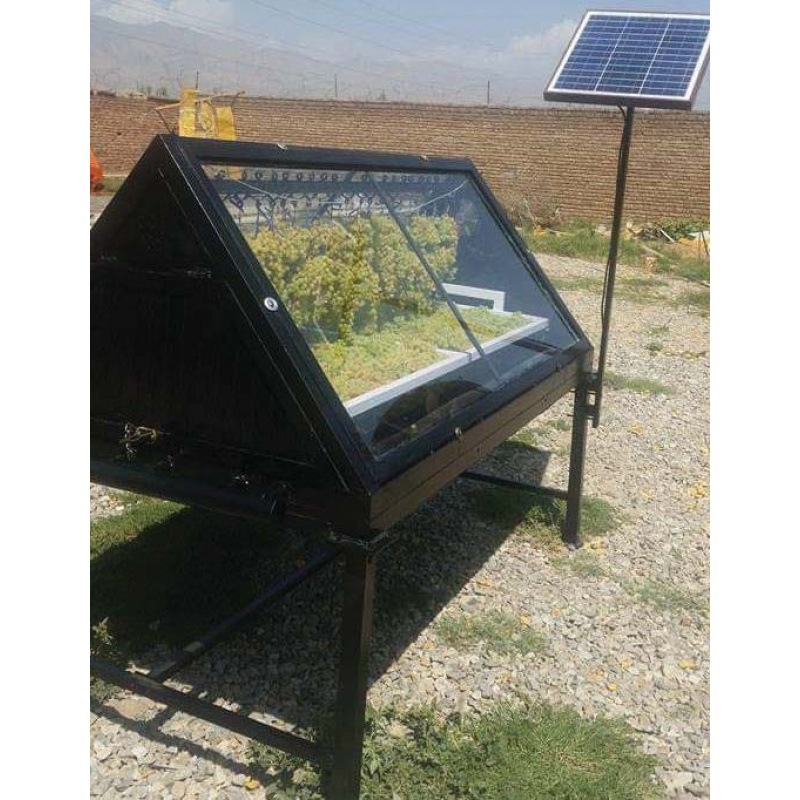

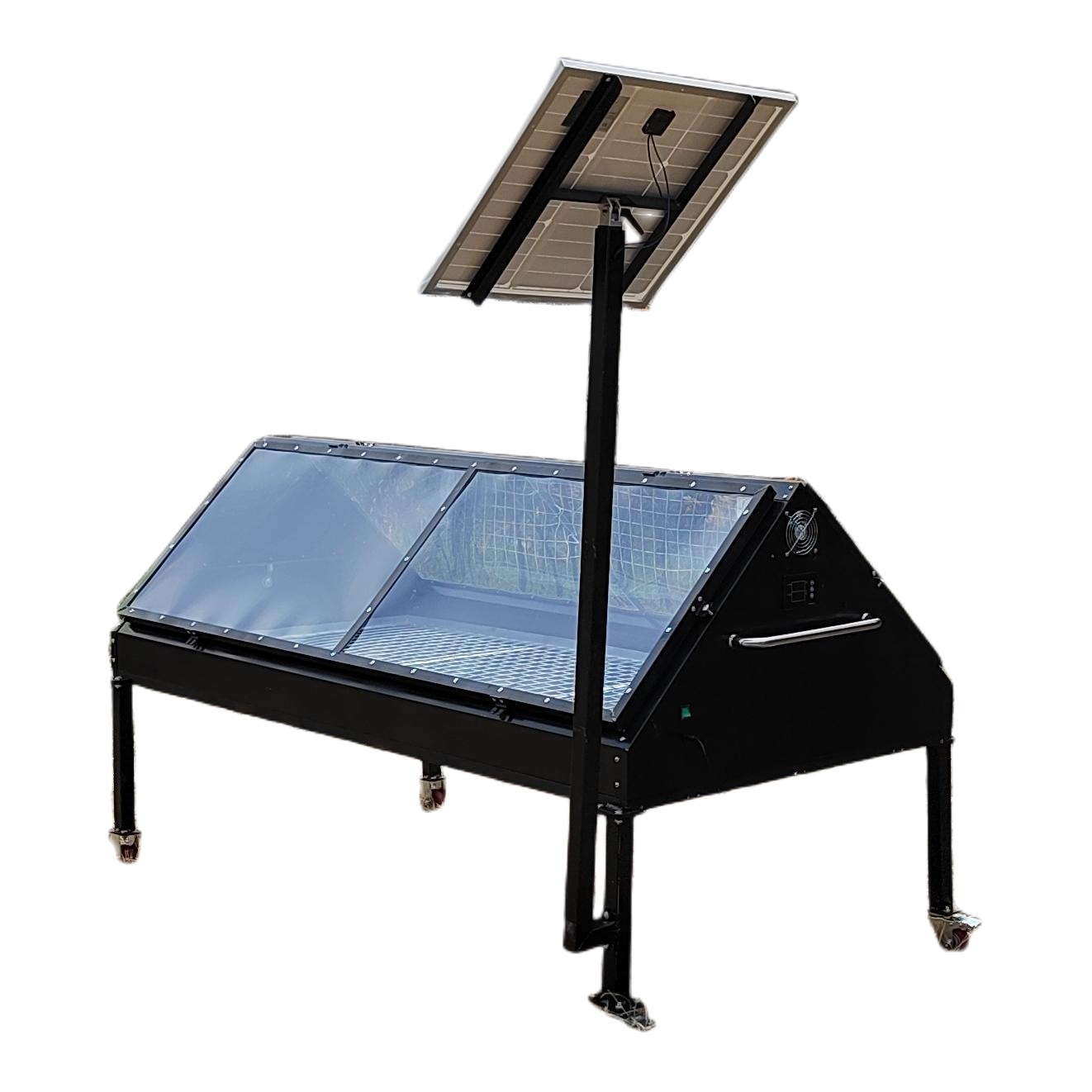

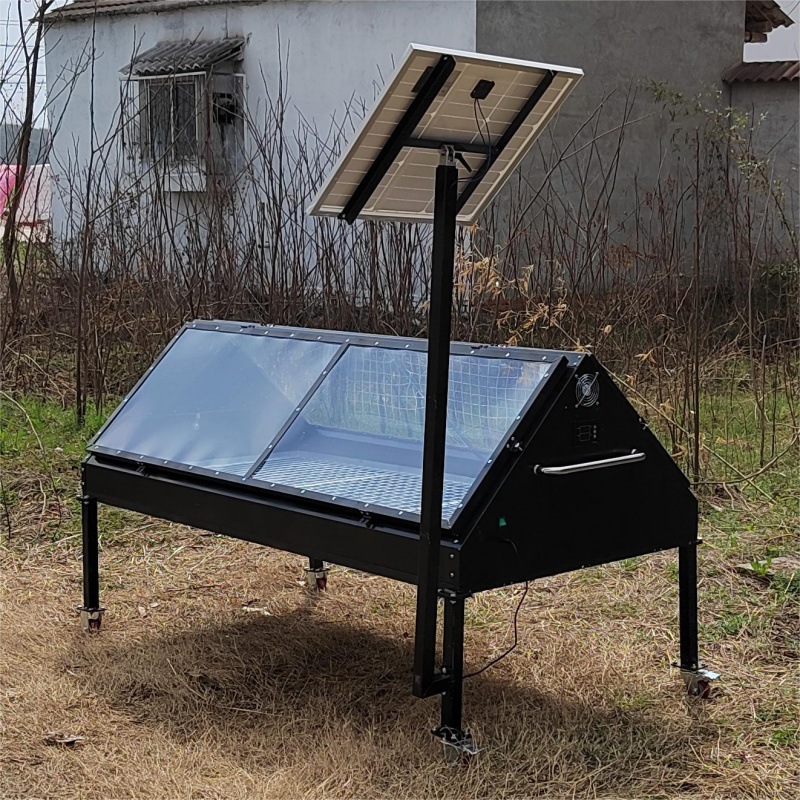

Micro solardryer AMS-20 Tunnel Solar Dryer (20 -60Kg)
AMS-20太阳能烘干机烘干箱蔬菜水果海鲜鱼肉粮食
一套包装信息
尺寸2070*1020*270mm,毛重50公斤左右

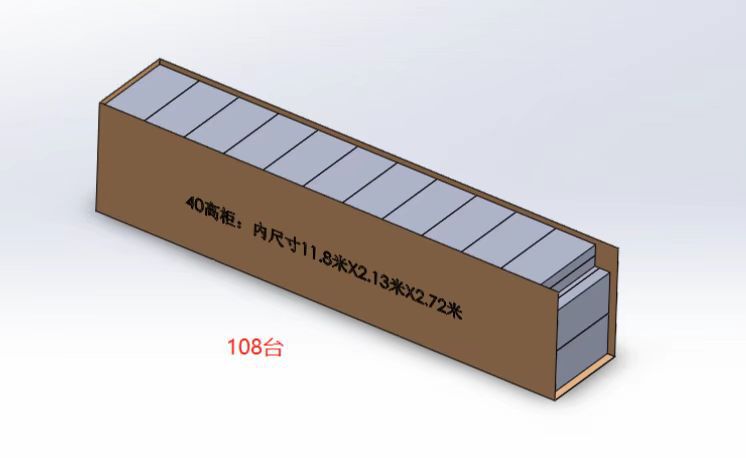

一个40高柜可以装108台套
1unit 40HQ load 108sets
详见最下面装箱3D图

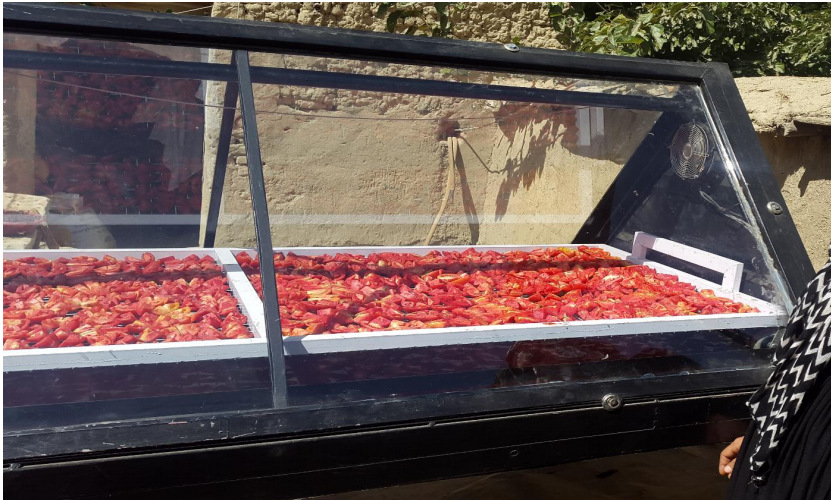

Loading capacity: 20-60kgs

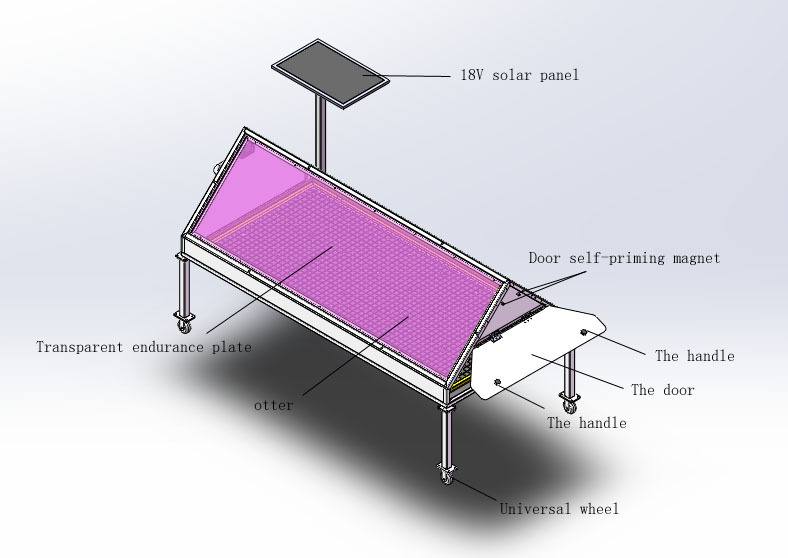

Solar Dryer lid made of transparent fibre glass sheet, thickness of 3-4 mm
Solar Dryer lid support made of 25 x 25 angle iron.

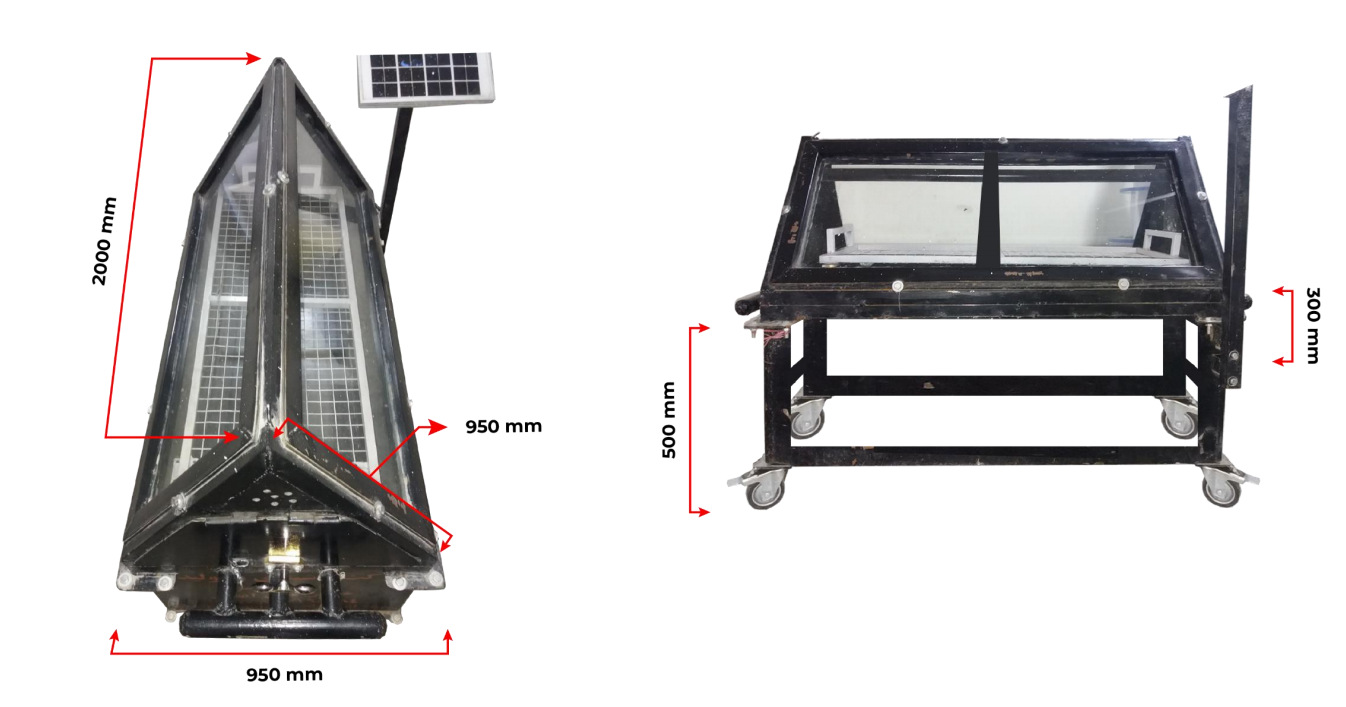

Solar Dryer lid dimensions: 2000X950 mm
Solar Dryer Frame made of 25 x 25 angle iron.

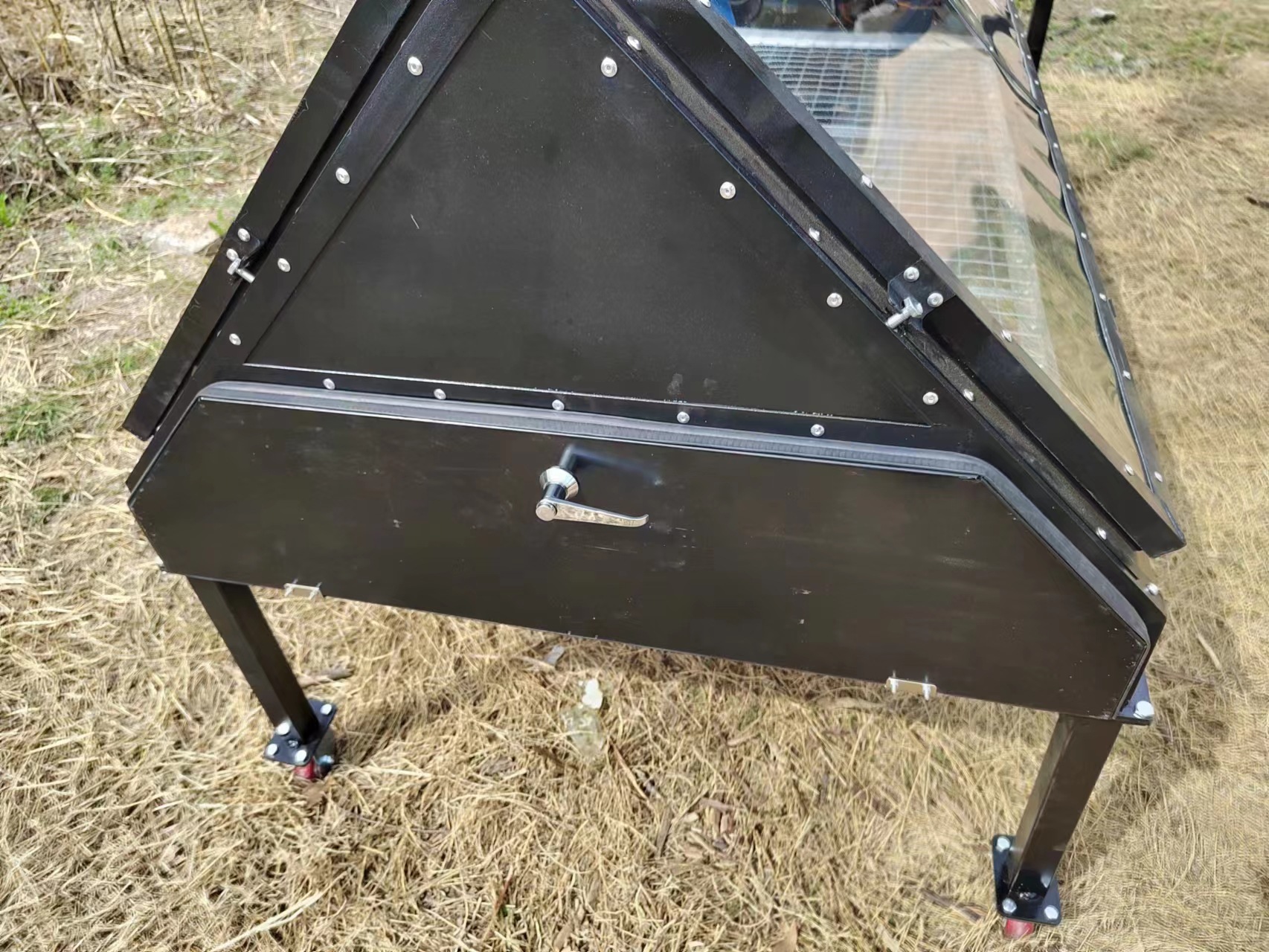

Walls of the dryer made of galvanized sheet.
Wall height up to lid:300 mm
Length of solar Dryer wall:2000 mm
Width of solar Dryer frame:950 mm
Frame cover made of galvanized sheet with 32 holes for ventilation
Solar panel installed with 12V/18v/36V output and capable to run the fan without using any battery cell

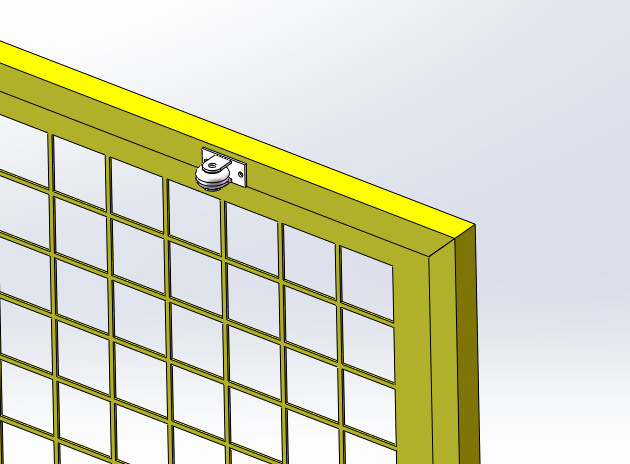

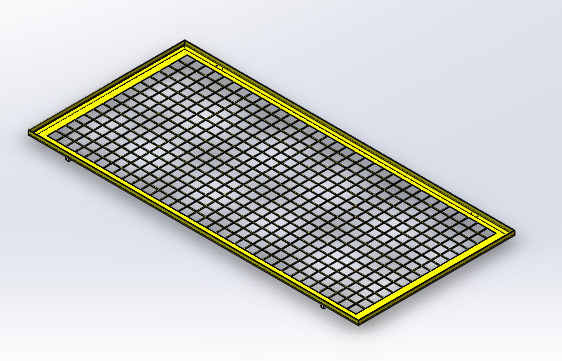

Galvanised tray for food items. The tray cells should be 50mmx 50mm
Galvanised tray dimensions: thickness with Rubber wheel:1900X900 X70 mm
Solar Dryer legs made of 25 x 25 iron angle;

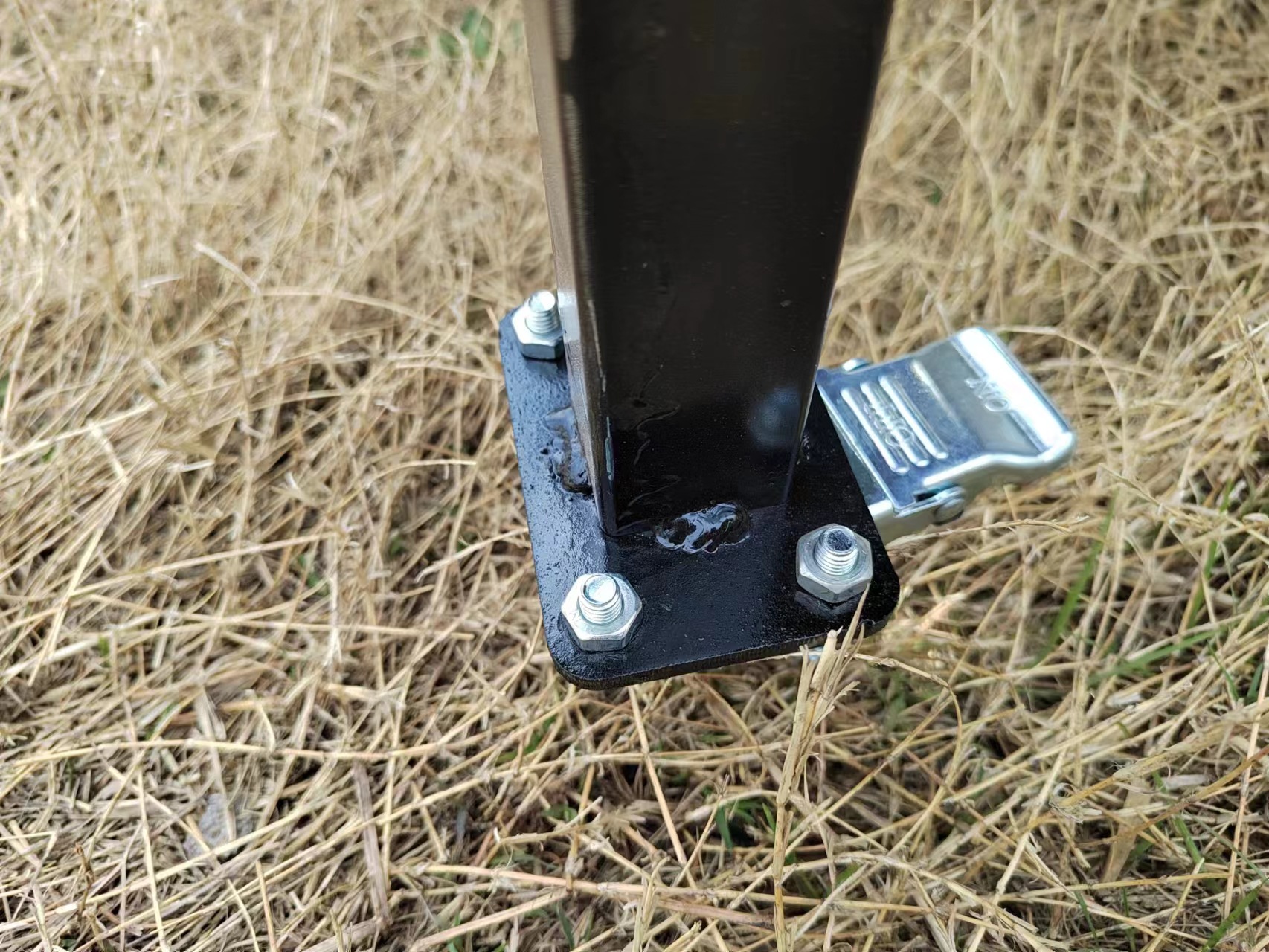

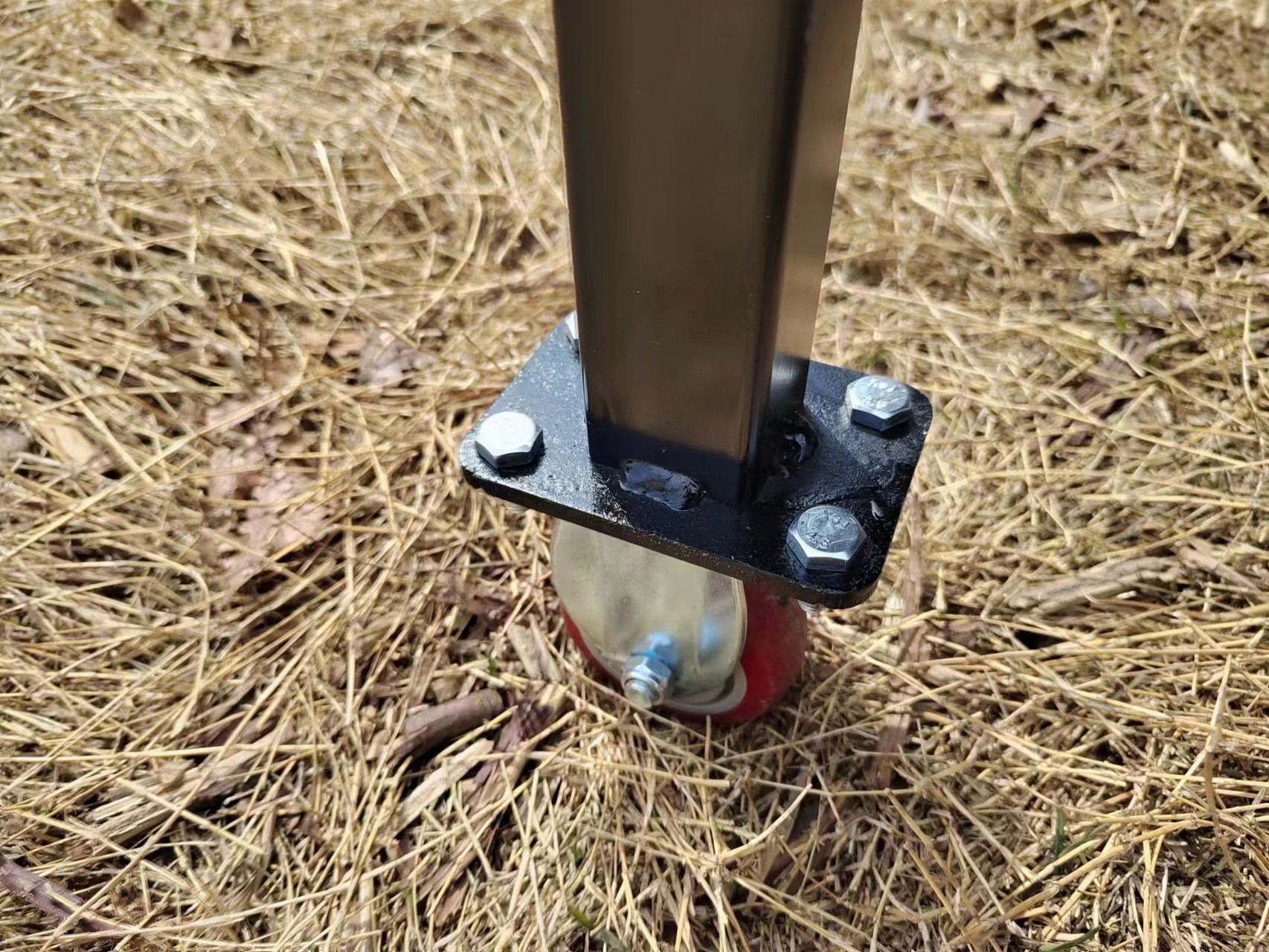

500mm long with Rubber wheel with total locking devices - Wheel Ø x wheel width 10 x 3 cm
Fan installed on the side of the wall,
the fan is covered with gauze/screen to avoid insects entering,
and the circulation of fan per second is 100.















由于广告法的原因,抱歉该产品不能给出详细的描述和说明,如果大家对我司产品感兴趣,请在线旺旺咨询,万分感谢!
