Micro solar dryer AMS-40D9 Tunnel Solar Dryer (20 -45Kg)

AMS-40D9太阳能烘干机烘干箱蔬菜水果海鲜鱼肉粮食

一套包装信息

尺寸1200*650*1105mm，毛重60kgs公斤左右

一个40高柜可以装120台套

1unit 40HQ load 120sets

详见最下面装箱3D图

Loading capacity: 20-45kgs

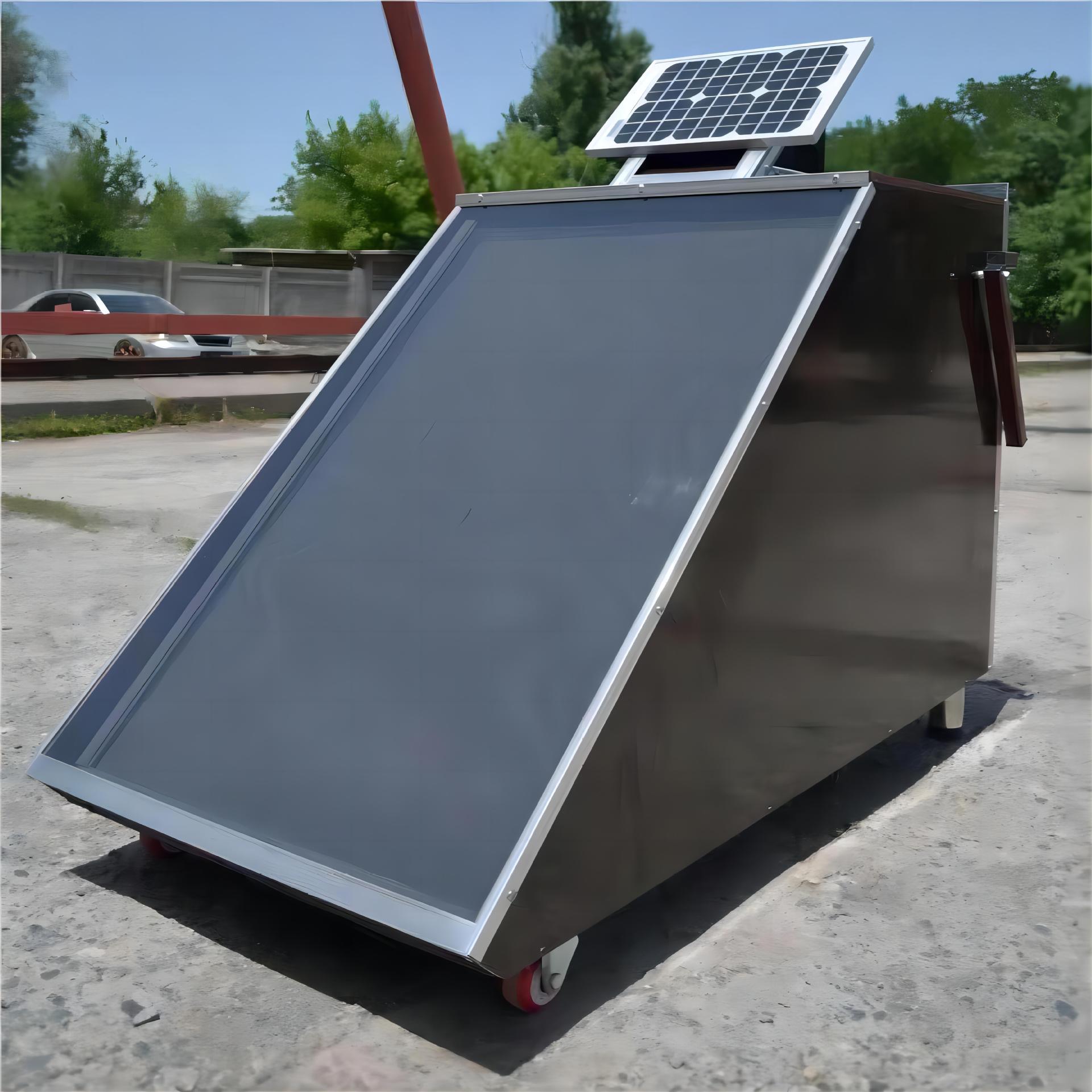

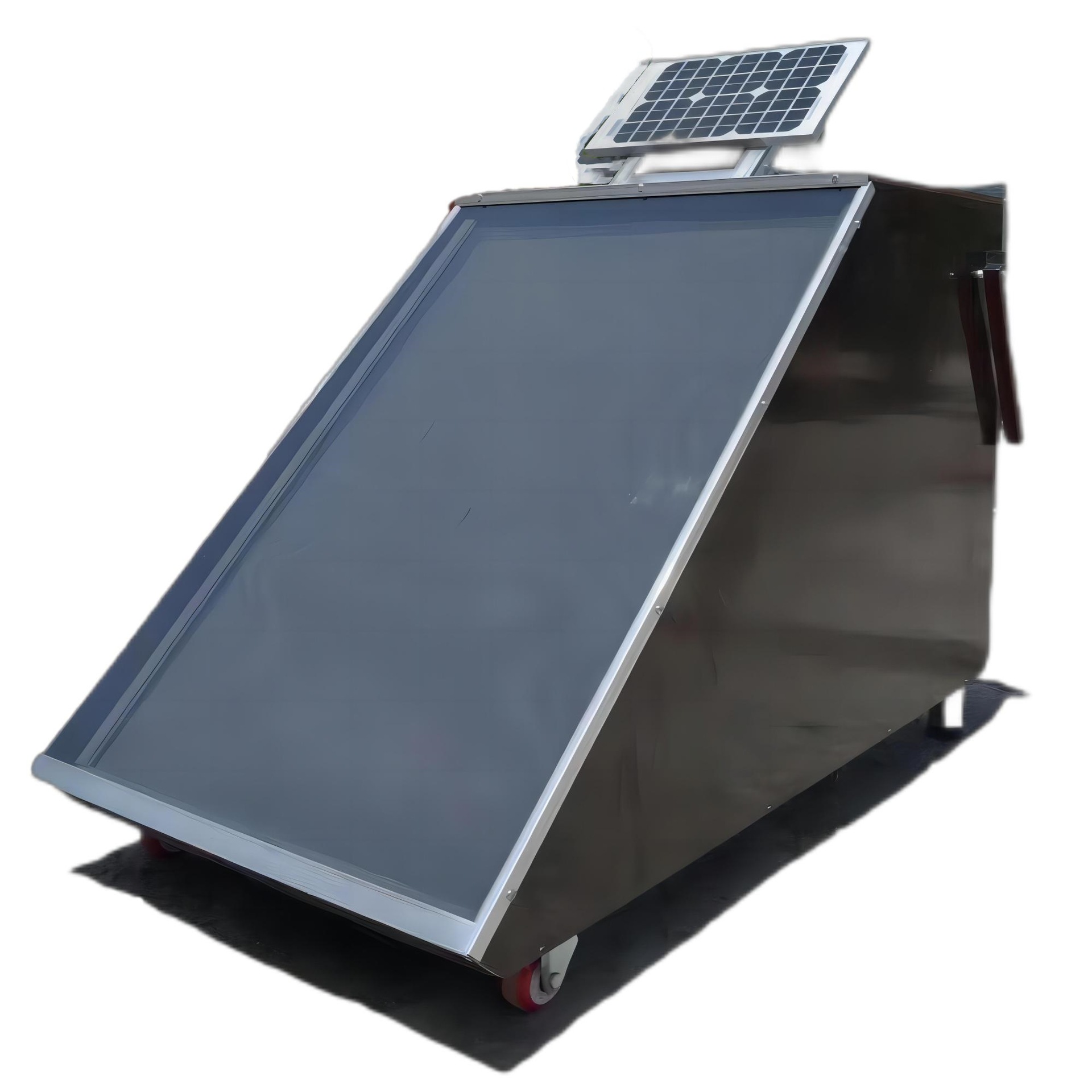

Solar dryer AMS-40D9 is designed for drying vegetables, fruits, mushrooms, meat, fish, herbs, kurut and other products.

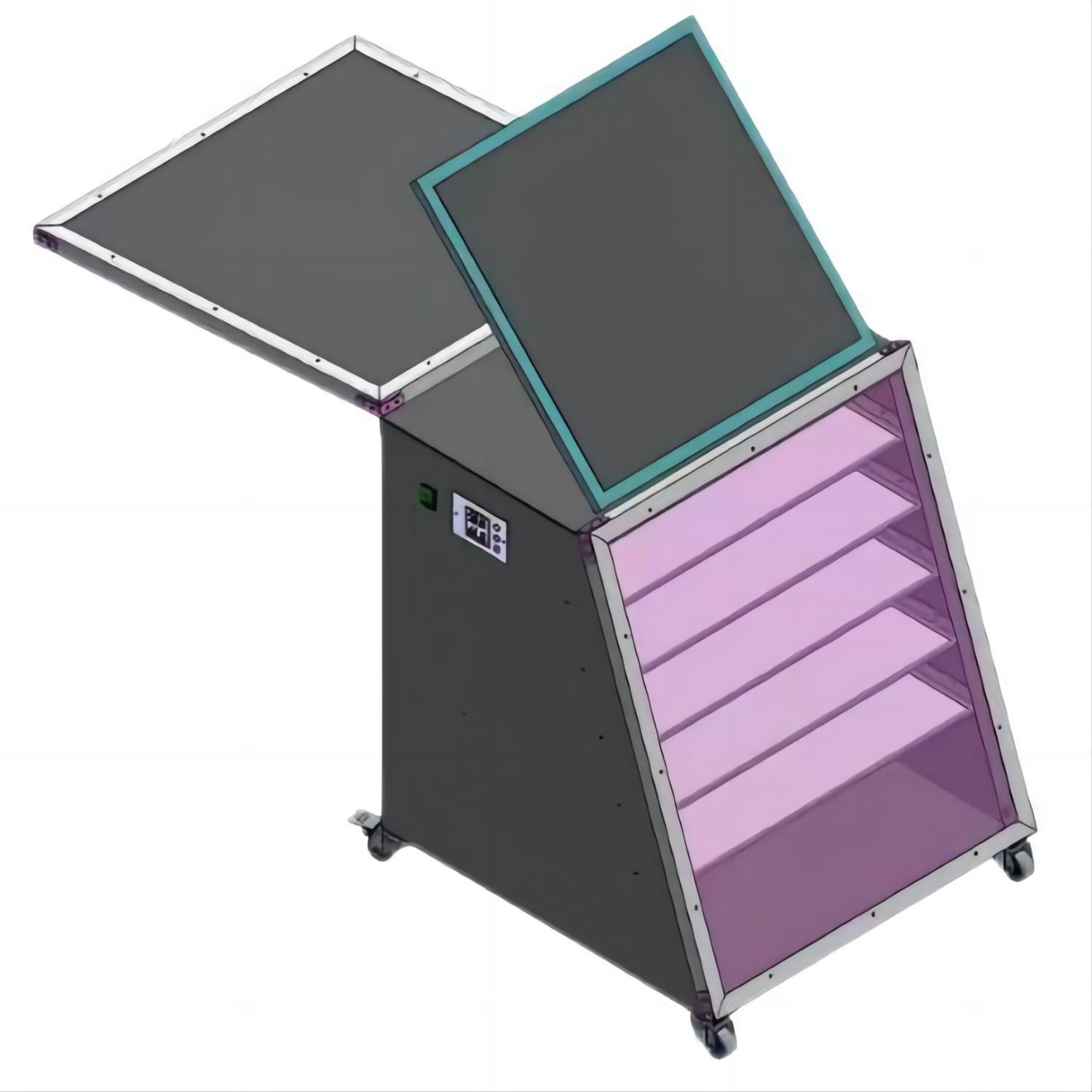

The dryer consists of an air collector where the air is heated, a drying chamber where the trays are located on which the products are dried, a photovoltaic panel that powers the fan, and a backup heating panel. The dryer operates by blowing heated air onto the products prepared for drying.

The main power supply mode of the solar dryer is solar radiation - that is, in sunny warm weather (air temperature above +20 +25℃), the dryer is placed so that direct sunlight falls on the photovoltaic panel and air collector, and drying of products is carried out without the need for additional energy. When solar radiation hits the photovoltaic panel, it generates electricity to operate the fan, by means of which forced ventilation of heated air in the drying chamber is carried out, which helps remove moisture from the product.

In the absence of solar radiation (in cloudy weather, at night), air heating and fan power can be provided from the backup heating panel by connecting it to the 220V network.

Main characteristics:

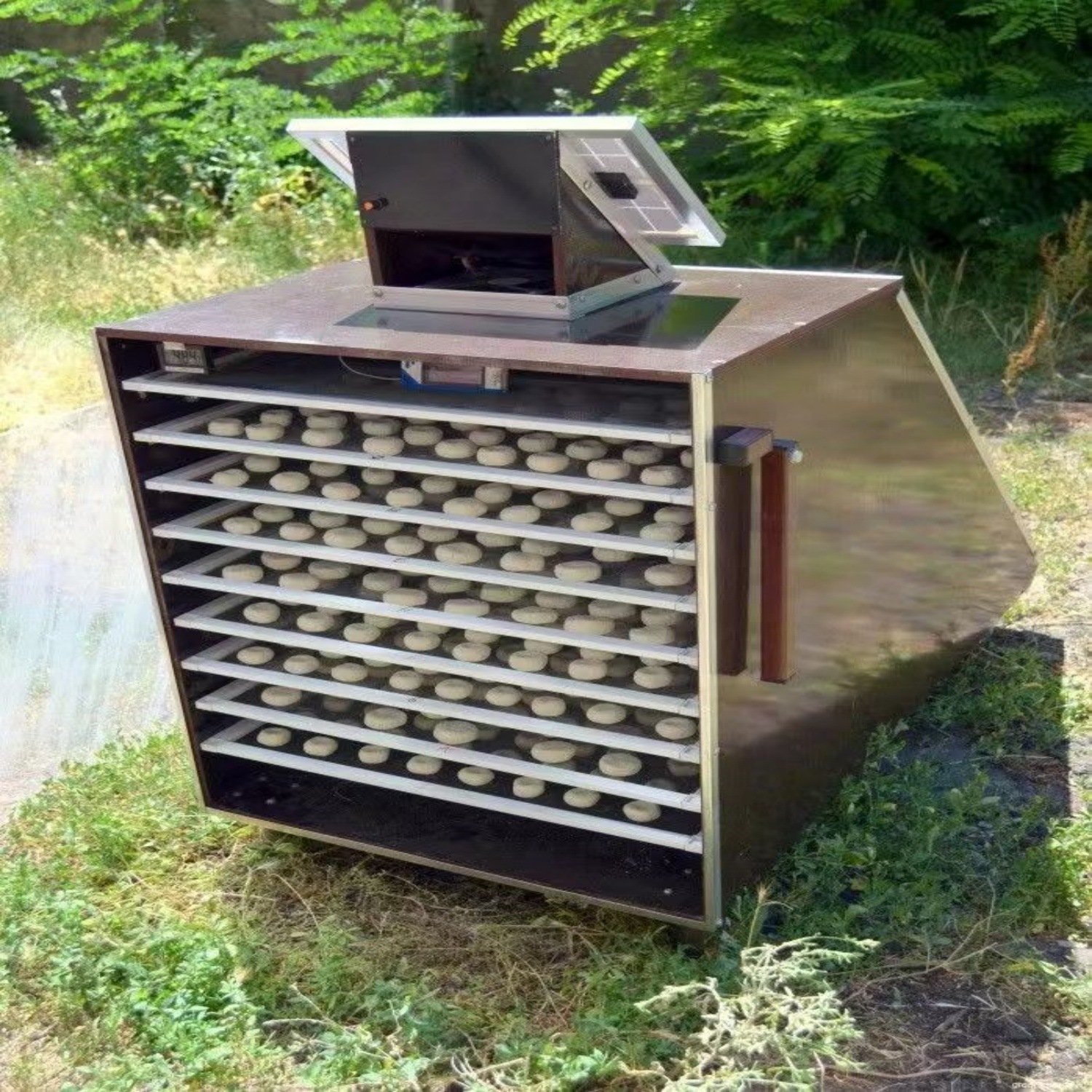

• Number of pallets - 9 pcs;
• Pallet size 0.60*0.40 m;
• Circulation - fan 12V, 2800 rpm;
• Main power supply - 10W photovoltaic panel;
• Backup power supply - from a 220V network, power - from 600 to 900 W（optional）
• Overall dimensions -1100*620*1200mm

 Advantages of solar dryer:

• Drying fruits and vegetables, kurut and other products in the open air from March to September (at a temperature of at least +20 - 25℃) and all year round - indoors (at a temperature of at least +20 - 25℃);
• Simultaneous loading of 20-45kgs of products;
• Preservation of taste, color and usefulness of the product;
• Protection from rodents, insects, birds, dust and precipitation;

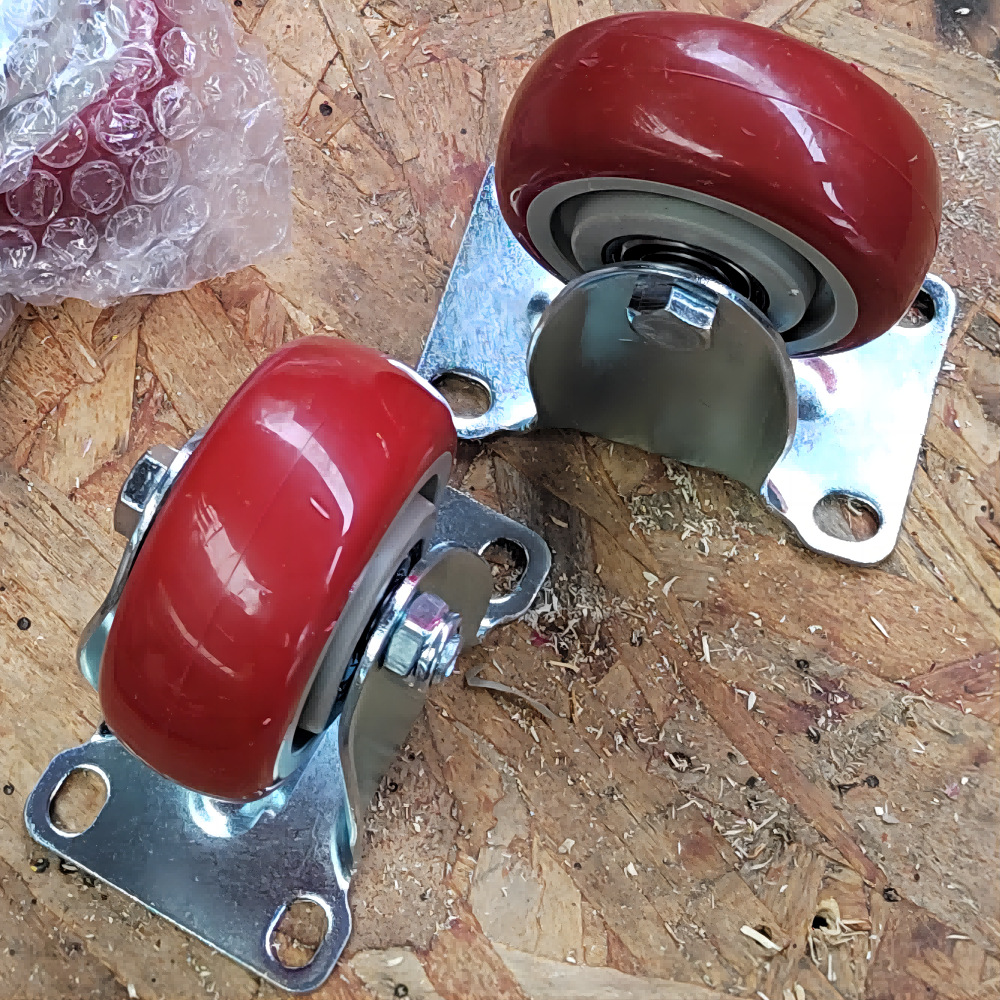

• Mobility - wheels and handles installed on the dryer allow you to easily move it;
• Reduces the area needed for drying food and the space needed for storing food.

Approximate drying time for products (may vary depending on local conditions):
