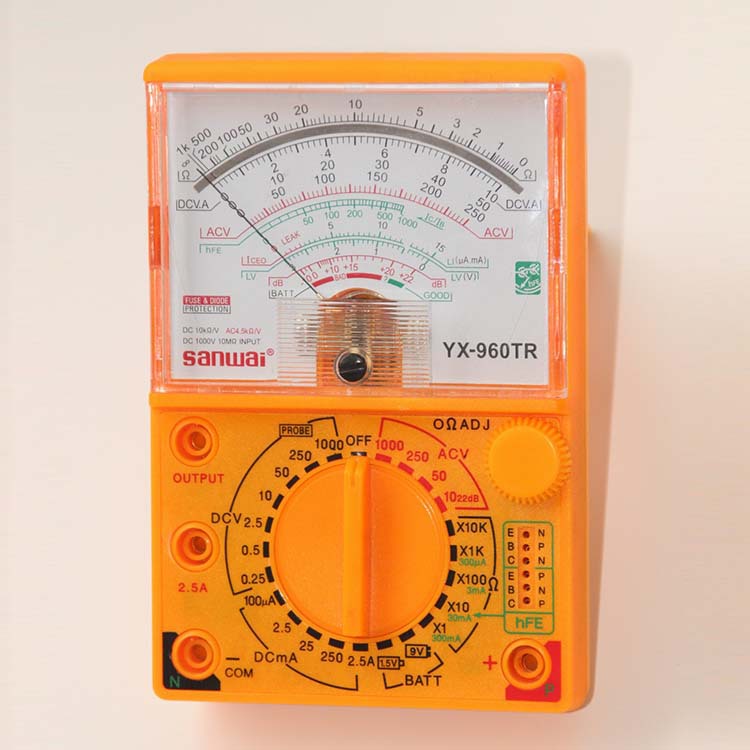

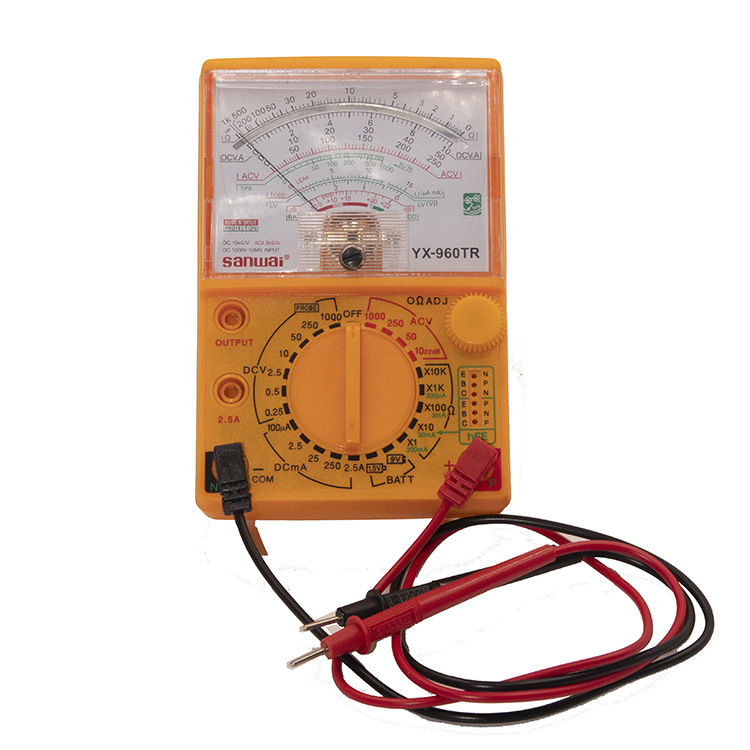

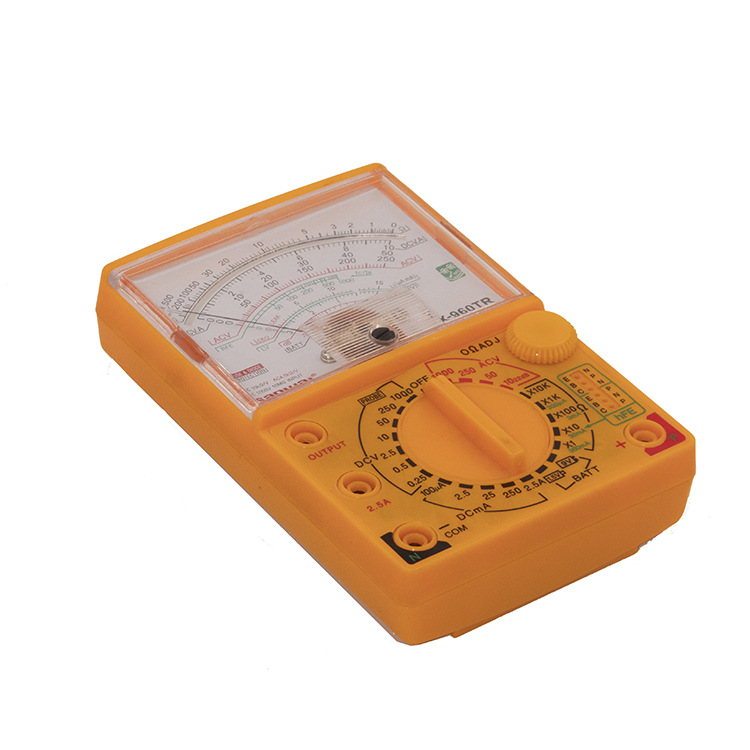

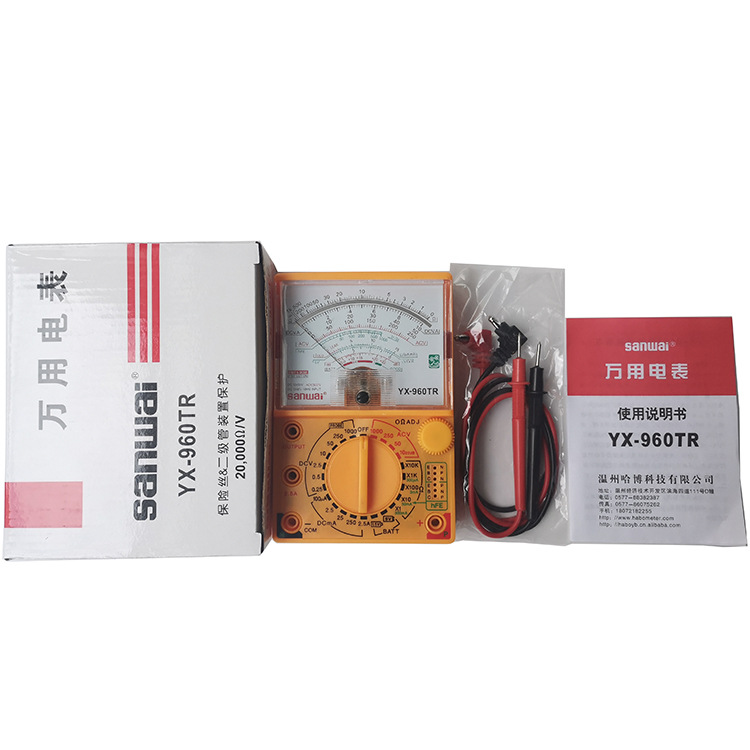

厂家直销外贸指针万用表，YX-960TR
带安全保险丝！
方便携带，安全可靠!
愿哈博产品给您的生活带来便利!
Product Overviews
| Model Name: | YX-960TR | ||
| Product size: | 15*9.8*3.2cm | ||
| Weight | 325G | ||
| Measurement | Measurement ranges | Accuracy | Remarks |
| DCV: | 0-0.1-0.5-2.5-10-50-250-1000V | ±3% against full scale | input impedance 20k Ω/V |
| ACV | 0- 10/50/250/1000V | ±4% against full scale | Input impedance 9k Ω/V |
| DCmA | 0-50μA-2.5mA-25mA-250mA-2.5A | ±3% against full scale | Voltage drop 250mV(100mV for 50uA) |
| Resistance | x1,x10,x100,x1k,x10k | ±3% of arc | Internal batteriesUM-3(1.5V)x2 006P(9V)x1 |
| Battery test | 0-1.5v good-?-BAD color-coded scale 0-9v GOOD-?-BAD color-coded scale | ±5% of arc | load current 1.5v 250mA 9v 25mA |
| dB | -10dB~0~+22dB(for 10VAC)~+62dB | Input impedancce 9k Ω/ | |
| LI | 0~150mA atx1 range 0-15mA atx10 range 0~150uA atx1k range 0~1.5uA atx100k range | current across test pins | |
| LV | Common to each Ω range 3v-0v(reverse of L1 scale) | Voltage applied across terinal whiel Ω is measured | |
| HFE | 1000 ATX 10 RANGE | Insert hFE terminal (on scale)directly | |

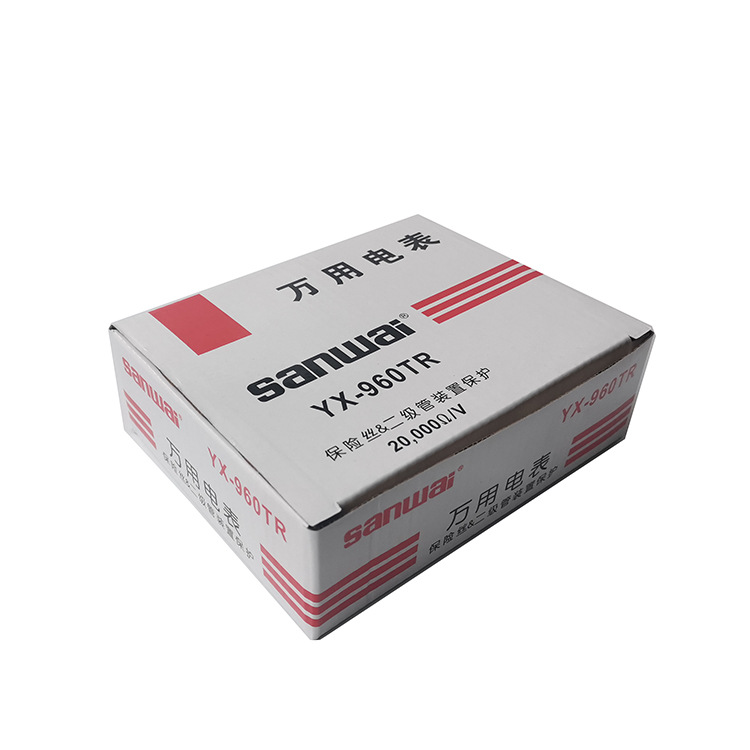

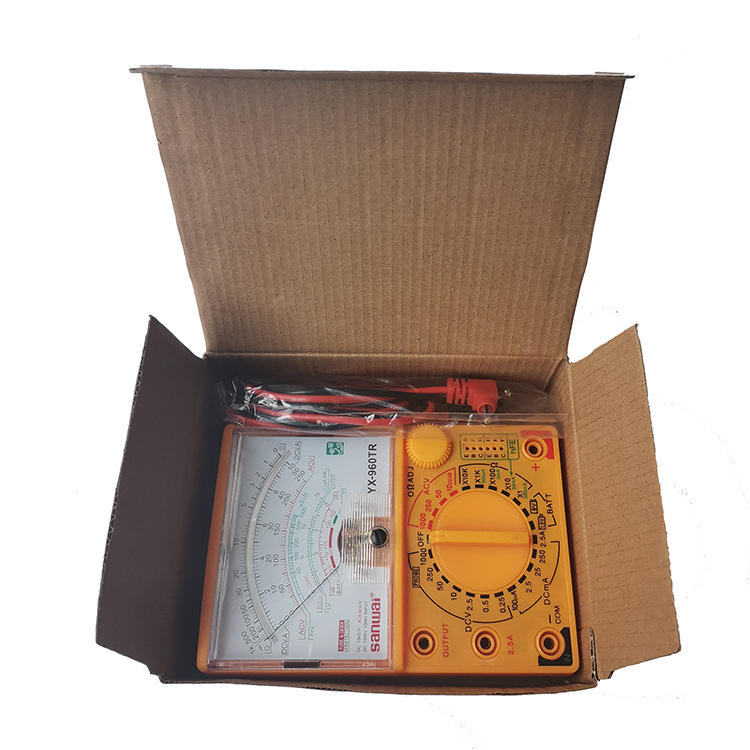

| Package Information | color box 40PCS/CARTON, G.W./N.W.:13/12KG, MEAS:430x315x275MM
color box, 60PCS/CARTON, G.W./N.W.:15.5/14.5KGS, MEAS:430x320x405MM | ||
Company Introduction
温州市哈博科技有限公司，原称温州哈博仪表有限公司，成立于2011年。公司坐落于温州市经济技
术开发区，工业资源丰富，交通便利，物流发达。公司从事于仪表仪器、电子元器件、塑料制品、
五金制品和厨房用品的设计、开发和生产，经过多年不懈的坚持和探索，公司不断总结管理经验，
巩固团队建设，优化产品结构，保证了每个产品的优良性，同时不断拓展
海外业务，产品远销日本、东南亚、欧洲等地区，受到用户的一致好评和高度赞誉。
哈博坚持以管理求效益，服务求信誉，创新求发展的精神 ，秉持以人为本，质量优先，共同发展
的理念，用优质的产品服务 广大消费者。我们真诚欢迎来自全国各地及海外的用户、商家、同行来
哈博参观 、咨询和洽谈合作。哈博愿与您携手共创美好的明天
Certifications
Shipping and Payment
RFQ
更新时间：2025-09-10 16:55
