Product Overviews

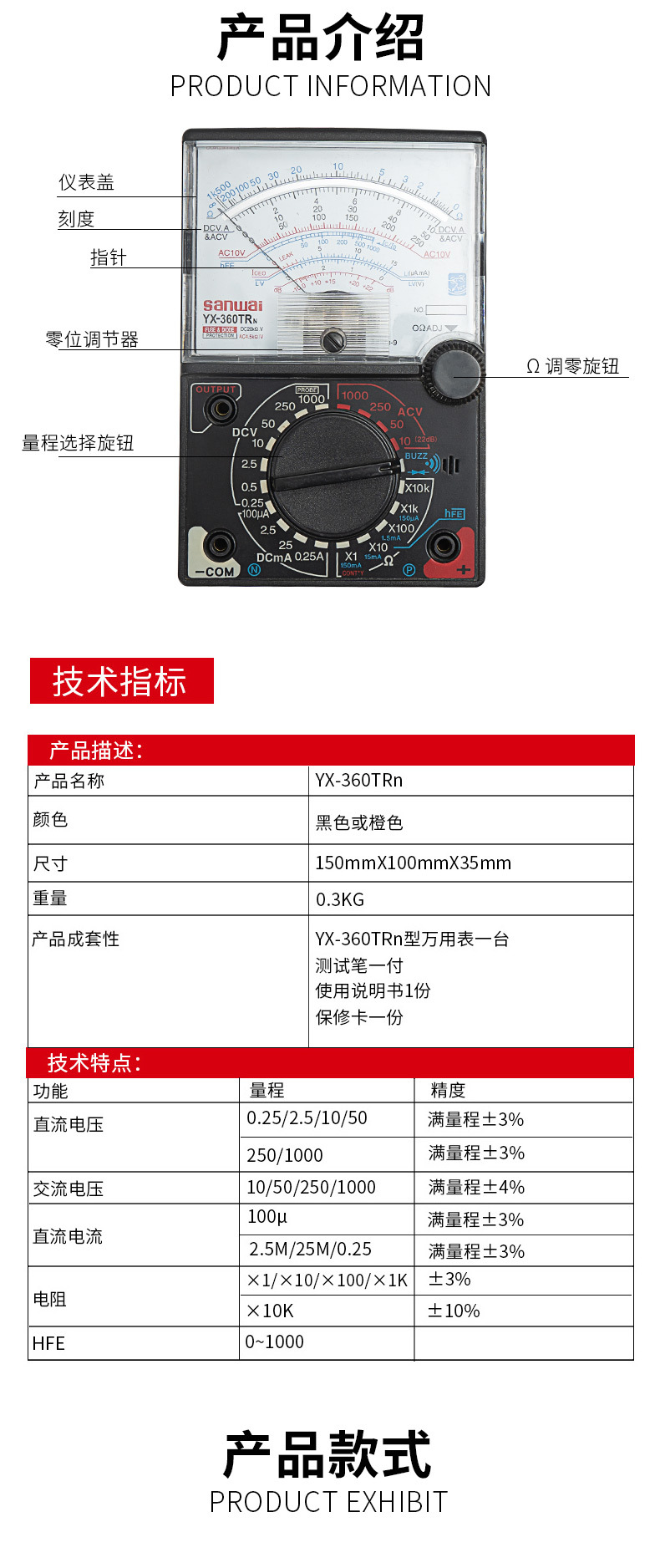

| Specifications of the model YX360TRN | |
|
◊Measure AC&DC voltage, DC current, resistance, AF level, transistor parameter, load current, load voltage, capacitance, inductance |
|
| ◊Excellent DC resolution factor of 2mV and expanded resist-ance measurement from 0.2Ω to 20MΩ | |
| ◊Series capacitor terminal (OUTPUT) blocks DC to enable measurement of only AC components | |
| ◊A large and bright meter with a scale length of 80mm and ifs sensitivity of 44μA at full scale | |
| ◊Fuse and Diode protection | |
| ◊Measures hFE to 1000 using optional TR connector | |
| YX-360TRN WITHOUT LED AND BUZZER,YX-360TRE-B WITH LED ANDBUZZER | |
| DCV | 0.25-0.5-2.5-10-50-250-1000V± 4%f. S. |
| ACV | 10-50-250-1000V ± 5%f. S. |
| DCA | 0.1-2.5-25-250mA ±4%f. S. |
| OHM: | 2K/20K/200K/2M/20MΩ ± 4% of arc. |
| dB: | -10~+62dB |
| L1: | 150μ/1.5m/15m/150mA |
| HFE: | 0~1000(with TR connector) |
| Power supply: | R6 (1.5V)*2, 622F 9V*1 |
| Model Name: | YX-360TRN |
| Color:Black | Black |
| Size: | 150*100*35mm |
| Standard Accessories: | 1.Multi meter 2.test lead 3.manual 4.color box |
| PACKING: |
color box 60PCS/CARTON G.W./N.W.:13/12KGS MEAS:420x315x270MM color box 40pcs/carton G.W./N.W.:10/9KGS MEAS:42*31.5*27CM |
