| Characteristics | large Jaw Calibe clamp meter with full protection design. |
| Data hold function for easy reading after measurement | |
| Easy to read in dark condition with blue backlight | |
| Non-contact measurement ensures the measurement safety. | |
| auto range clamp meter with capacitance measurement | |
| auto range clamp meter with large capacity capacitance | |
| auto range clamp meter with True RMS measurement | |
| Non-contact frequency measurement | |
| auto range clamp meter with temperature measurement | |
| Technology features | |
| DCV: | 600m-6-60-600-1000V ±0.8% |
| ACV: | 600m-6-60-600-750V ±1.0% |
| ACA: | 60-600-1000A ±2.0% |
| Resistance: | 600-6k-60k-600k-6M-60MΩ ±1.0% |
| Frequency: | 0-10MHz ±3.0% |
| Capacitance: | 600n-60u-600uF-20mF ±3.0% |
| Temperature: | -20ºC~1000ºC ±2.0% |
| Duty Cycle: | 0.1%-99.9% ±0.1% |
| General description | |
| LCD size: | 45x23mm |
| Max display: | 5999 |
| Low battery indication: | YES |
| Overload protection: | YES |
| Diode Test : | YES |
| Transistor Test: | YES |
| Data Hold: | YES |
| Backlight: | YES |
| Auto range: | YES |
| True RMS: | YES |

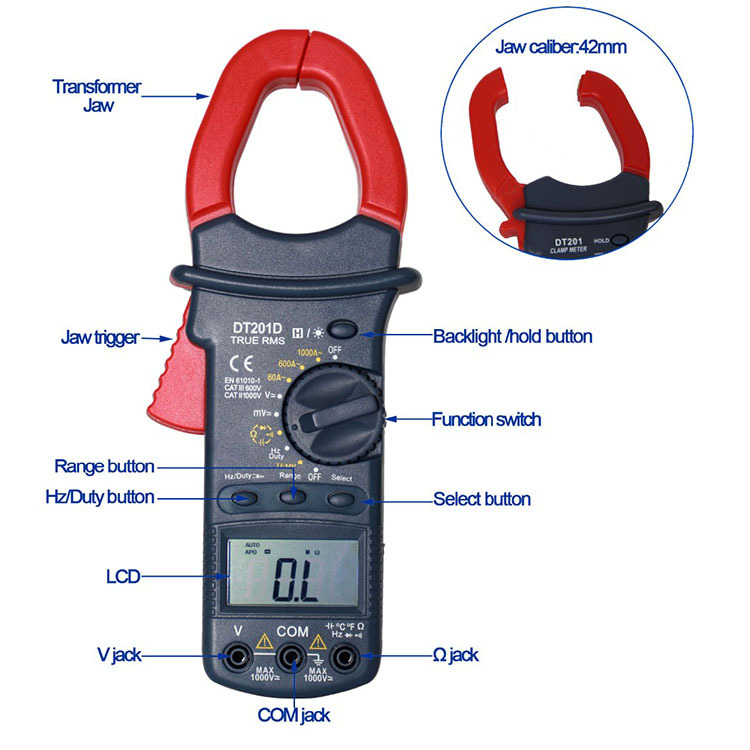

| Jaw Caliber: | 42mm |
| Power supply: | one 9V 6F22 battery |
| Product size: | 245x66x45mm |
| Product weight: | about 334g (without battery) |

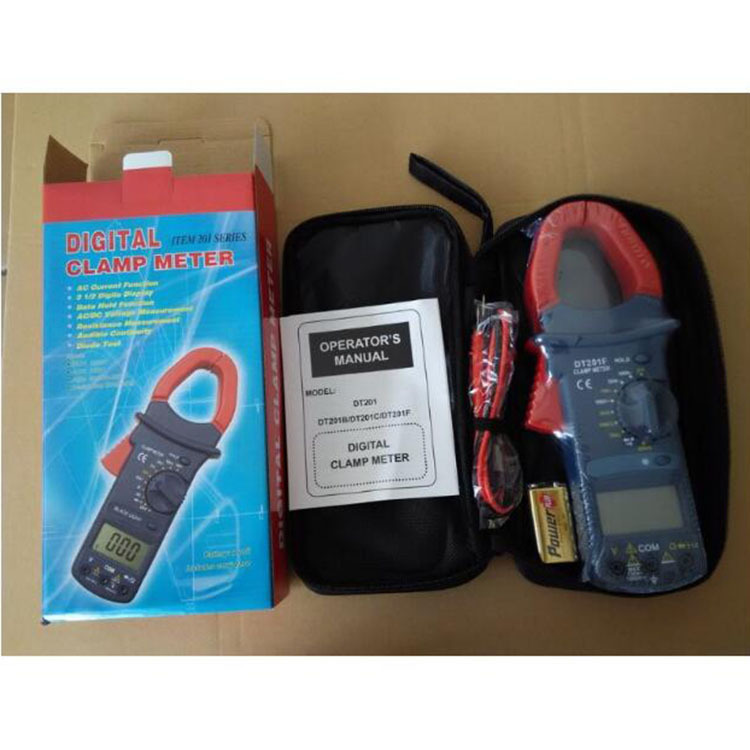

| Standard Accessories: | meter(without battery) ;carrying bag, test lead, manual, battery |
| Packing details | Packing: color box Packing quantity :20 PCS/CTN Carton size: 52.5x29x28.5CM G.W/ N.W:13/12KG |
