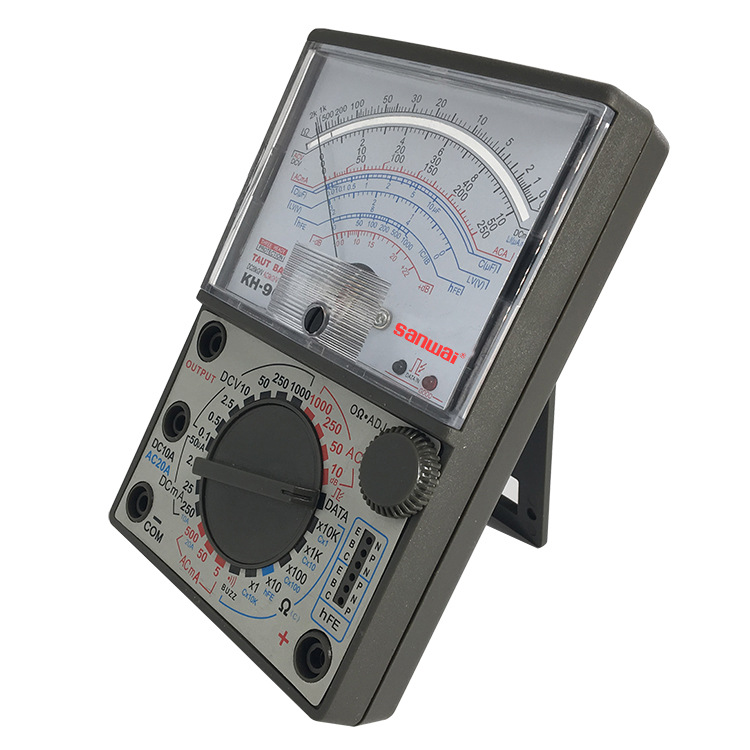

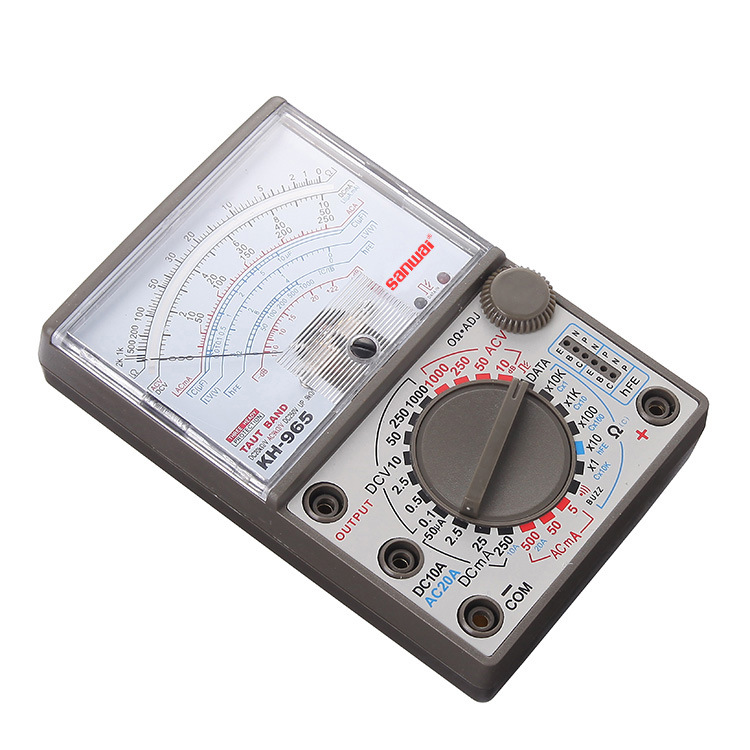

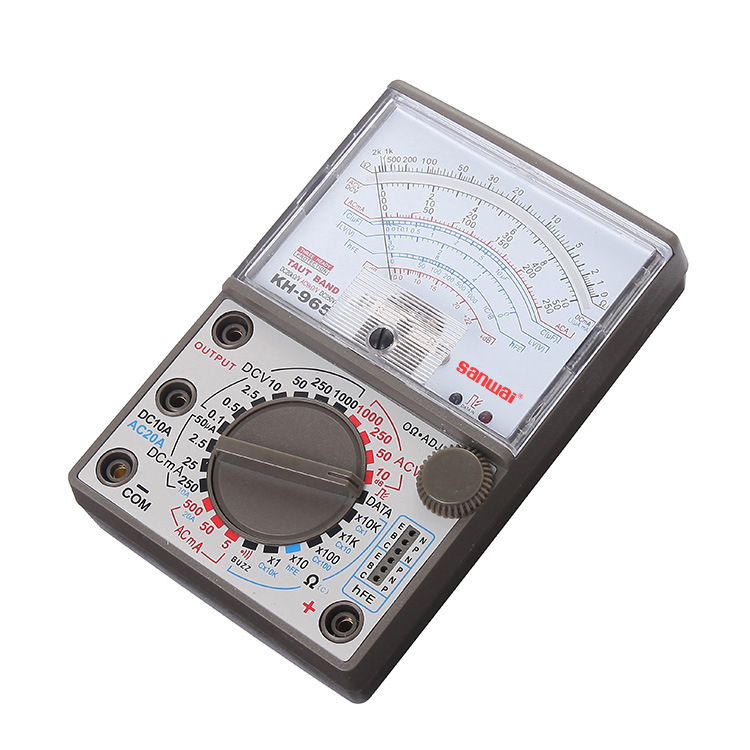

| Model Name: | KH965 |
| Color: | Black |
| Characteristics of KH965 | Infared data detecting, |
| 0.01-100000uF capacity mearsuring |
| Four gears of AC current range |
| LED luminous tube testing |
| Buzzer access hint |
| DC isolated input terminal |
| Triplex protection device |
| Standardized resistacne box appliance |
| DCV: | 0-0.1(5%)-0.5-2.5V-10V-50V-250V-1000V |
| ACV: | 00-10-50-250-1000V |
| DCA: | 0-50uA-2.5mA-25mA-250mA-10A(10%) 0.1V for 50uA |
| ACA: | 0-5mA-50mA-500mA-20A(10%) |
| Resistance: | * 1(0.2Ω-2KΩ)*1K(200Ω--2MΩ), |
| * 10(2Ω-20KΩ)*10K(2K-20M), |
| * 100(20Ω-200KΩ) |
| C(uF) | * 1(0.01-10uF) * 10(0.1-100uF) * 100(1-1000uF) * 1k(10-10000uF) * 10k(100-100000uF) |
| Load Current LI(uA,mA) | 0-60uA(R-10k) 0-150uA(R*1K) 0-150mA(R*10hFE) 0-1.5mA(R*100) 0-150mA(R*1) |
| Load voltage LV(V) | 0-3V(R*1-R*10-R*100-R*1K) 0-12V(R*10K) |
| Center resistance: | 6Ω, 60Ω, 0.6KΩ, 6KΩ |
| Transistor DC amplification hFE: | 0-1000(R*10hfE) |
| Audio frequency level dB | -10dB +22dB(ACV 10V) +14dB(ACV 50V) +28dB(ACV 250V) |
| Power supply | 1.5V battery *2 pieces 6F22 9V battery *1 piece |
| Testing environment | 23℃±2℃ humidity less than 60% RH(level placed) |
| Operation environment | temperature 0-40℃ humidity less than 75% RH(without dewing) |
| Fuse tube specification | 0.5A/250V Φ5*20mm |
| Dimensions: | 146mm x 100mm x 33mm |
| Weight: | 191g(with battery) |

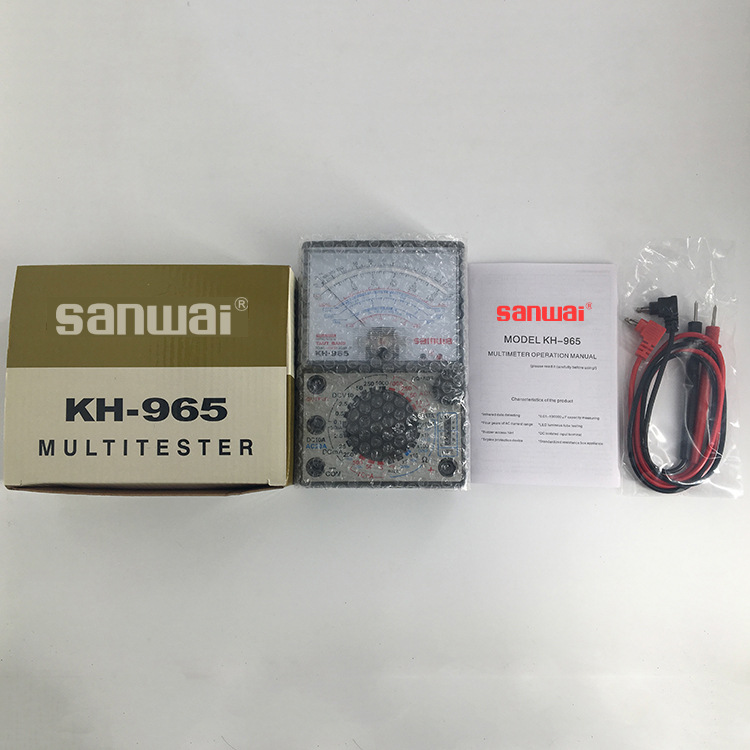

| Package Information | color box 40PCS/CARTON,G.W./N.W.:13/12KG,MEAS:430x315x275MM |
