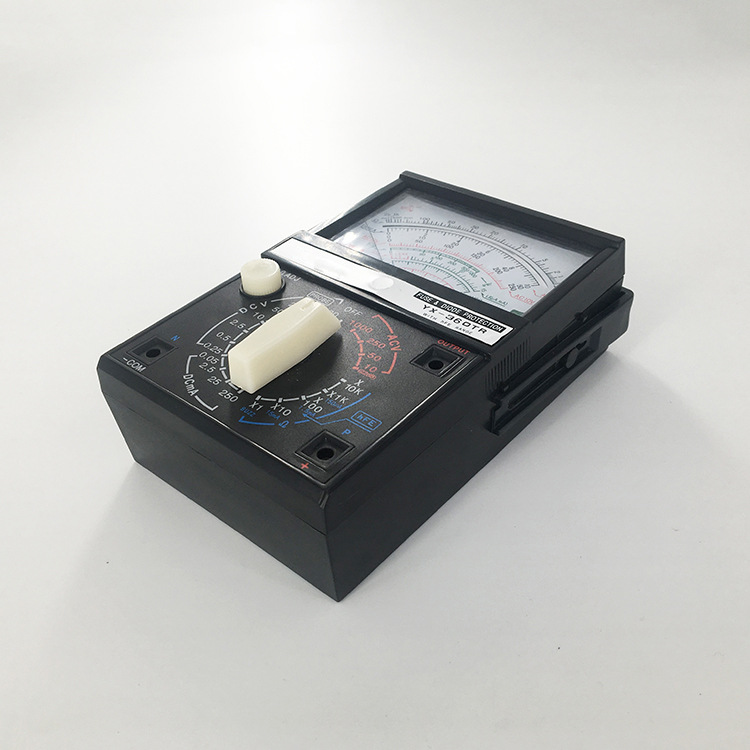

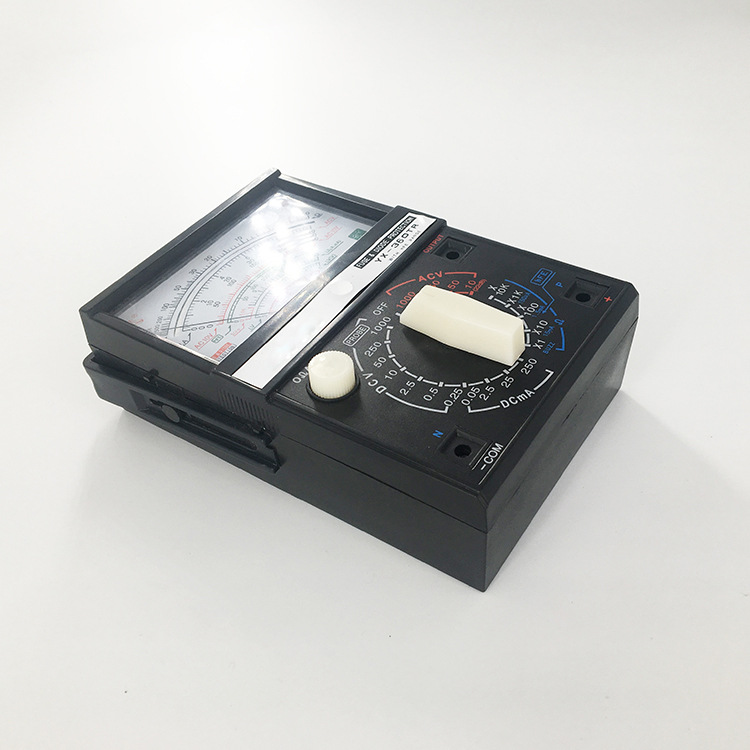

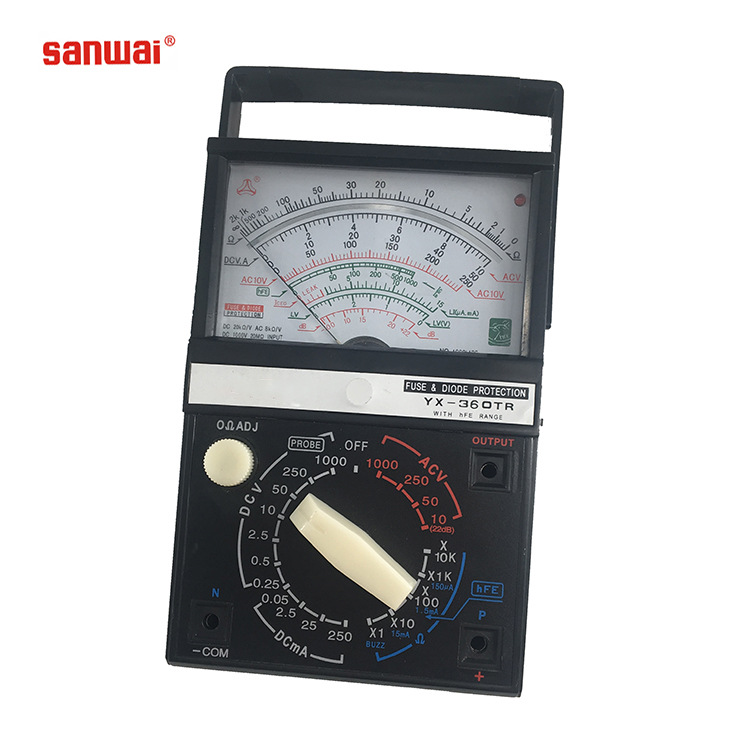

厂家直销外贸指针万用表，YX-360TR
带安全保险丝！
方便携带，安全可靠!
愿哈博产品给您的生活带来便利!
Product Description
|
This instrument is portable multitester designated for measurement of weak current circuits.
with low voltage.
Overload protection circuit up to maximum 230V is provided. |
|||
| Model name: | YX-360TR | ||
| Color: | Black | ||
| Circuit protection: |
The circuit is orotected by fuse even when voltage of up to AC 230V is impressed on each range for 5 seconds. |
||
| Internal battery: | R6(IEC) or UM-3 1.5Vx2,0062p(9v) | ||
| Internal fuse | 0.5A/250V 5.2mm dia x20 mm | ||
| Stadard calibration temp. and humidity range: | 23±2°C 45-75%rRH | ||
| Operating temoreature and huidity range: | 0-40°C80% RH max., No condensation | ||
| Witstand voltage: | 3KV AC(1min.)between input terminal and case | ||

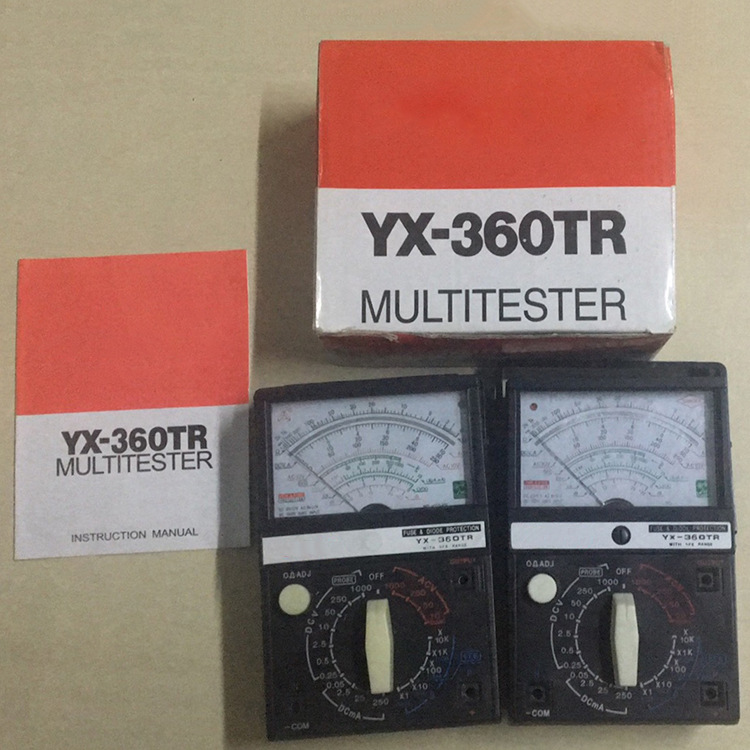

| Accessories: | One copy of instruction manual | ||
| Function | Accuracy | Remarks | |
| DCV | 0.1V | ±5% against full scale | input impedance 20k Ω/V |
| DCV | 0.25/2.5/10/50V | ±3% against full scale | input impedance 20k Ω/V |
| DCV | 250/1000V | ±3% against full scale | Input impedance 9k Ω/V |
| ACV | 10/50/250/1000V | ±4% against full scale |
Input impedance 9k Ω/V 30Hz-100kHz within 3%f.s. (AC 10V range) |
| DCA | 50μA | ±3% against full scale | *1 Voltage drop 0.1v |
| DCA | 2.5m/25m/0.25mA | ±3% against full scale | *1 Voltage drop 0.25v |
| Ω | 2k/20k/2M(X1/X10/X100/X1K)Ω | ±3% of arc |
Center value 20 Ω Max.value 2k Ω release voltage 3v |
| Ω | 20M(X10K) | ±5% of arc |
Center value 20 Ω Max.value 2k Ω release voltage 3v |
| C | 10uF | ____ | *2 |
| dB | -10dB~0~+22dB(for 10VAC)~+62dB | ____ | Input impedancce 9k Ω/ |
| LI |
0~150mA atx1 range 0-15mA atx10 range 0~150uA atx1k range 0~1.5uA atx100k range |
current across test pins | |
| Ues the | optional probe | ||
| HV(DC HIGHT VOLT | DC 25KV | HV-10T PROBE | |
| hFE | 1000 ATX 10 RANGE | hFE-6T PRODE | |
