Semi-electric stacker
 |
半电动堆高车,设备搭载高品质液压泵站，起升平稳、动力强劲，搭配重型 C 型钢门架与高强度钢板货叉，坚固耐用、承载稳定（常规载重 1000-2000kg，提升高度 1.6-3m）。人性化操作手柄集成升降控制，转弯半径小、移动灵活；配置防爆阀、过放电保护装置及脚踏式刹车，安全可靠。
Equipped with a high-quality hydraulic power pack, it ensures smooth lifting and strong power. Combined with a heavy-duty C-section steel mast and high-strength steel forks, it is durable and stable in load-bearing (conventional load capacity: 1000-2000kg, lifting height: 1.6-3m). The ergonomic handle integrates lifting control, with a small turning radius and flexible movement. It is equipped with explosion-proof valves, over-discharge protection devices and foot-operated brakes, which are safe and reliable.
|
经验丰富 |
源头工厂 |
支持定制 |
发货迅速 |
Experienced |
Source Factory |
Customization |
Fast delivery |
| 额定载重Capacity | T | 2T |
| 起升高度Lift height | MM | 1600-2000-2500-3000-3500 |
| 载荷中心距Load centre distance | MM | 550 |
| 自重（带电瓶）Weight(with battery) | KG | 340-400-420-440-460 |
| 门架尺寸Gantry size | MM | 120*50*8 |
| 轮子材质Wheel material | / | PU |
| 承重轮尺寸Loading-bearing wheel size | MM | 直径diameter80*70 |
| 门架降低高度Gantry reduce height | MM | 2060-1560-1860-2060-2028 |
| 货叉降至最小高度Forks lowest height | MM | 86 |
| 整车长度Total length | MM | 1750 |
| 整车宽度Total width | MM | 800 |
| 货叉尺寸Fork size | MM | 1150*1160*60 |
| 货叉外侧宽度Outer side fork width | MM | 640/680 |
| 货叉内侧宽度Inner side fork width | MM | 310/330 |
| 支腿内侧宽度Inner side outrigger width | MM | 360 |
| 支腿外侧宽度Outer side outrigger width | MM | 610 |
| 支腿长度Outrigger length | MM | 880 |
| 起升泵站Lifting pump station | KW | 1.6 |
| 电压Voltage | V | 220v |
| 电池Battery | AH | 12AH |
| 包含配件Including accessories | / | 内门架加筋Internal frame reinforcement |
注:以上尺寸为手工测量难免存在误差，请以收到的实物为准!
 |
1、快速装卸省时省力Fasting loading and unloading,time and-saving and labor-saving. |
 |
2、加厚货叉 不易变形不易断裂承重力强Thickened fork,not easy to deform or break,with strong bearing capacity. |
|
3、尼龙轮不易腐蚀适用不同地面路况Nylon wheels,corrosion and damage resistant,suitable for various ground condition. |

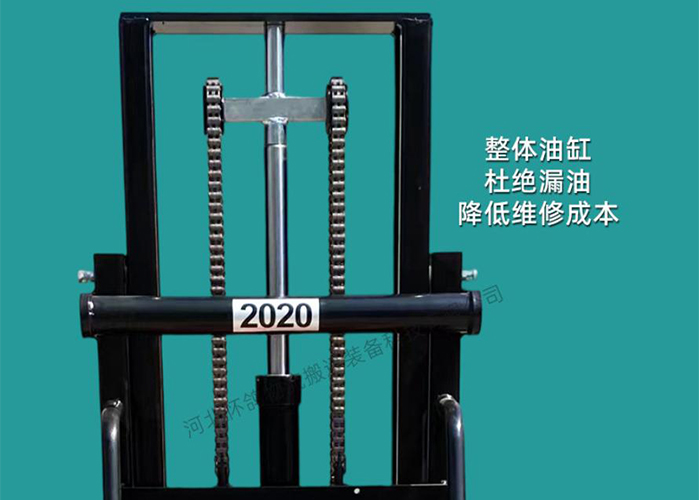

4、整体油缸 杜绝漏油 降低维修成本
Integral oil cylinder,oil leakage prevention,lower maintenance costs.
|
(1) C-shaped steel material,no deformation under heavy loads. (2) Various sizes can be customed. (3) Fork adjustable. (4) Steering wheel configuration with anti pressure foot design. (5) Adopting plate chain for safer use. |
(1)采用C形钢材制造，能在重负荷下保持不变形。 (2)可定制不同尺寸的产品。 (3)叉臂可调节。 (4)方向盘设计有防压装置。 (5)采用链条传动方式，使用更安全。
|
